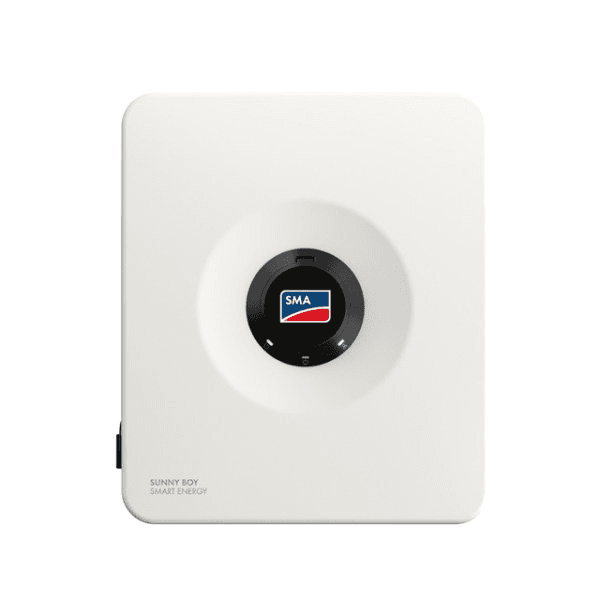

SMA Sunny Boy Smart Energy 6 kW Single-Phase Hybrid Solar Inverter

The SMA Sunny Boy Smart Energy 6.0 SBSE6.0-50 single-phase hybrid solar inverter combines photovoltaic inverter and battery inverter functions in a single unit, enabling a home to produce, store, and manage solar energy. It offers a rated output power of 6,000 watts, features 3 independent maximum power point trackers, and supports an installed PV power of up to 12,000 watts peak.

Its high-voltage battery connection allows surplus solar energy to be stored and used later, increasing the utilization of the energy generated by the system. In addition, it includes advanced energy management, production optimization, monitoring, and emergency power supply functions, as part of the SMA Home Energy Solution ecosystem.

Two-in-one hybrid inverter for solar energy and storage

The Sunny Boy Smart Energy combines a photovoltaic inverter and a battery inverter in the same device. Energy from the solar modules can be converted directly into alternating current to supply household loads or feed the grid, and can also be used to charge a compatible battery.

When the installation needs stored energy, the inverter converts the direct current supplied by the battery into alternating current compatible with the electrical installation.

SMA allows this model to be used as a hybrid inverter, photovoltaic inverter, or battery inverter, providing flexibility for both new installations and different energy storage configurations.

6-kilowatt rated power in single-phase

The SBSE6.0-50 model provides a rated active power of 6,000 watts at 230 volts and 50 hertz, with a maximum apparent power of 6,000 volt-amperes.

The nominal AC voltage is 230 or 240 volts, with an operating range between 184 and 253 volts. The rated output current is 26.1 amperes and the maximum current reaches 30 amperes.

The power factor is 1 at rated power and can be configured within the range specified by the manufacturer to suit grid requirements.

Up to 12 kilowatts peak of photovoltaic power

Although its rated output power is 6 kilowatts, the Sunny Boy Smart Energy 6.0 supports a maximum PV module power of 12,000 watts peak.

This capacity makes it possible to oversize the PV array relative to the inverter’s rated power, a strategy that can improve production during periods of lower irradiation and increase the annual yield of the installation.

3 independent MPP trackers

The inverter incorporates 3 independent maximum power point trackers, with one input per tracker. This configuration makes it easier to install module strings with different orientations, tilts, or production conditions.

Inputs A and B can be configured for parallel operation under the compatible conditions and firmware versions indicated by SMA.

Wide PV voltage range

• Maximum PV power: 12,000 watts peak.
• Maximum input voltage: 600 volts.
• Minimum input voltage: 60 volts.
• Start-up voltage: 66 volts.
• MPP tracking range: between 60 and 480 volts.
• Number of independent MPP trackers: 3.
• Number of inputs per MPP tracker: 1.
• Maximum usable current per input: 15 amperes.
• Maximum short-circuit current per input: 30 amperes.
• Maximum short-circuit current across all inputs: 60 amperes.

High-voltage battery connection

The SMA Sunny Boy Smart Energy includes an independent input for lithium-ion batteries. The supported voltage range is between 90 and 500 volts, so it is designed for compatible high-voltage storage systems.

SMA specifies that only batteries approved by the manufacturer should be used. Compatible solutions include SMA Home Storage, as well as certain high-voltage batteries from other manufacturers included in SMA’s current compatibility list.

Fast battery charging

The battery input supports a maximum charge and discharge current of 30 amperes. For the SBSE6.0-50 model, the maximum charging power reaches 10,000 watts, while the specified maximum discharge power is 6,316 watts.

• Battery type: compatible lithium-ion battery approved by SMA.
• Number of independent battery inputs: 1.
• Battery voltage range: between 90 and 500 volts.
• Maximum charge current: 30 amperes.
• Maximum discharge current: 30 amperes.
• Maximum short-circuit current: 55 amperes.
• Maximum charging power: 10,000 watts.
• Maximum discharge power: 6,316 watts.

Integrated emergency power supply

The Sunny Boy Smart Energy includes a manual emergency power supply function that can be used during a grid outage to supply selected loads using the energy available in the battery and the PV system.

The emergency power output provides a rated power of up to 3,680 watts at 230 volts. Activation of this mode is manual and requires the electrical installation to be prepared according to SMA instructions.

Automatic backup available via accessories

The inverter is also prepared to be part of an automatic backup system using compatible SMA accessories. This function requires additional hardware and should not be confused with the integrated emergency power output.

In a compatible backup configuration, SMA specifies a single-phase backup rated power of up to 7,300 watts for the inverter, with temporary higher capacity for certain peak loads.

Available backup accessories for the range include solutions such as SMA Backup 1P and SMA Backup 3P, which should be selected according to the system design.

Maximum efficiency of 98.1 percent

The Sunny Boy Smart Energy achieves a maximum efficiency of 98.1 percent, enabling solar energy conversion with low electrical losses.

The system uses a transformerless architecture and natural convection cooling, eliminating the need for fans during normal operation.

Typical acoustic emissions are approximately 35 decibels, making it suitable for residential environments.

SMA ShadeFix to optimize solar production

The inverter incorporates SMA ShadeFix, SMA’s integrated shade management technology. This function analyzes the behavior of the PV array and optimizes the operating point of the modules when partial shading or other conditions affect the production curve.

The function is integrated directly into the inverter software and does not require individual optimizers installed on each module to perform its maximum power point management function.

SMA ArcFix for arc fault detection

The Sunny Boy Smart Energy incorporates SMA ArcFix, a DC arc fault detection system. The device monitors the PV installation and can stop energy feed-in when it identifies conditions associated with an electrical arc.

This function is part of SMA’s integrated protection features designed to increase the operational safety of the PV installation.

Integrated electrical protections

The inverter incorporates different internal monitoring and protection systems for the PV installation, the battery, and the grid connection.

• Input-side disconnection device.
• Electrical arc detection via SMA ArcFix.
• Ground fault monitoring.
• Grid monitoring.
• DC reverse polarity protection.
• AC short-circuit capability.
• All-current sensitive residual current monitoring unit.
• Electrical protection class I.
• Overvoltage category III on the grid side.
• Overvoltage category II on the battery and PV array.

It also supports external type II DC surge protection with monitoring through compatible solutions.

Monitoring and smart energy management

The SBSE6.0-50 includes different communication interfaces that allow monitoring of PV production, the battery, and the system’s energy flows.

It features Wi-Fi and Ethernet connectivity and can be integrated with platforms and devices from the SMA ecosystem, including Sunny Portal powered by ennexOS, SMA Energy App, SMA 360° App, SMA Energy Meter, and Sunny Home Manager.

Communication interfaces and protocols

• Wi-Fi: integrated.
• Ethernet: integrated, with 2 ports.
• Battery communication via CAN: integrated.
• RS-485: integrated.
• SMA Modbus and SunSpec: compatible.
• Modbus RTU: compatible.
• SMA Speedwire and Webconnect: compatible.
• SMA Battery Interface: integrated.
• Digital output: 1 output via multifunction relay compatible with SG Ready function.

Can operate as System Manager

In installations using an SMA Energy Meter, the Sunny Boy Smart Energy can work as a System Manager, acting as the central device for home energy management.

In this configuration, it can manage the system’s energy flows, integrate PV production and the battery, and manage up to 3 Sunny Boy Smart Energy units with battery within a compatible installation.

When the installation includes Sunny Home Manager, this device takes over the central energy management functions and the inverters are integrated as subordinate devices.

Integration with heat pumps and electric mobility

The SMA ecosystem allows the inverter to be integrated with other household energy consumers and producers, such as heat pumps and electric vehicle charging solutions.

Combined with the corresponding energy management components, the system can coordinate available solar energy, storage, and different loads to increase local utilization of PV production.

IP65 protection for indoor and outdoor installation

The inverter has an IP65 protection rating according to IEC 60529 and is designed for installation both indoors and outdoors, always respecting the mounting conditions specified by SMA.

Its operating temperature range is between -25 and 60 degrees Celsius, with power derating when thermal conditions require it.

It can operate at altitudes of up to 3,000 meters above sea level and supports relative humidity of up to 100 percent within the conditions defined by the manufacturer.

Dimensions and weight

The SMA Sunny Boy Smart Energy 6.0 has a compact format for an inverter that integrates both PV electronics and battery management.

• Width: 500 millimeters.
• Height: 586 millimeters.
• Depth: 236 millimeters.
• Weight: 17.5 kilograms.
• Cooling: natural convection.
• Typical acoustic emissions: 35 decibels.
• Protection rating: IP65.

Technical features of the SMA Sunny Boy Smart Energy 6.0 SBSE6.0-50

• Brand: SMA Solar.
• Range: Sunny Boy Smart Energy.
• Reference: SBSE6.0-50.
• Product type: single-phase hybrid solar inverter.
• Functions: photovoltaic inverter and battery inverter.
• Rated output power: 6,000 watts.
• Maximum apparent power: 6,000 volt-amperes.
• Nominal output voltage: 230 or 240 volts.
• AC voltage range: between 184 and 253 volts.
• Grid frequency: 50 or 60 hertz.
• Rated output current: 26.1 amperes.
• Maximum output current: 30 amperes.
• Maximum efficiency: 98.1 percent.
• Maximum PV power: 12,000 watts peak.
• Maximum PV voltage: 600 volts.
• MPP voltage range: between 60 and 480 volts.
• Minimum input voltage: 60 volts.
• Start-up voltage: 66 volts.
• Number of independent MPP trackers: 3.
• Maximum usable current per PV input: 15 amperes.
• Maximum short-circuit current per input: 30 amperes.
• Independent battery input: 1.
• Battery technology: SMA-approved lithium-ion.
• Battery voltage range: between 90 and 500 volts.
• Maximum charge current: 30 amperes.
• Maximum discharge current: 30 amperes.
• Maximum battery charging power: 10,000 watts.
• Maximum battery discharge power: 6,316 watts.
• Integrated emergency power supply: yes.
• Emergency power rated output: 3,680 watts.
• Emergency power activation: manual.
• Automatic backup: available via compatible additional SMA hardware.
• SMA ShadeFix: integrated.
• SMA ArcFix: integrated.
• Residual current monitoring: integrated.
• Wi-Fi: integrated.
• Ethernet: integrated.
• Number of Ethernet ports: 2.
• RS-485: integrated.
• Battery CAN communication: integrated.
• Modbus: compatible.
• SMA Speedwire and Webconnect: compatible.
• Digital output: 1 multifunction relay compatible with SG Ready.
• Protection rating: IP65.
• Electrical protection class: class I.
• Cooling: natural convection.
• Topology: transformerless.
• Operating temperature: between -25 and 60 degrees Celsius.
• Maximum operating altitude: 3,000 meters.
• Width: 500 millimeters.
• Height: 586 millimeters.
• Depth: 236 millimeters.
• Weight: 17.5 kilograms.

Hybrid inverter to maximize solar self-consumption

The SMA Sunny Boy Smart Energy 6.0 SBSE6.0-50 combines photovoltaic generation, storage, and energy management in a single-phase inverter. Its 3 MPP trackers allow solar arrays with different orientations to be designed, while its capacity to connect up to 12,000 watts peak of modules provides flexibility in system sizing.

The high-voltage battery connection, maximum efficiency of 98.1 percent, SMA ShadeFix and SMA ArcFix functions, emergency power supply, and integrated connectivity make the Sunny Boy Smart Energy the core of a residential PV installation designed to make the most of both instant solar production and stored energy.
