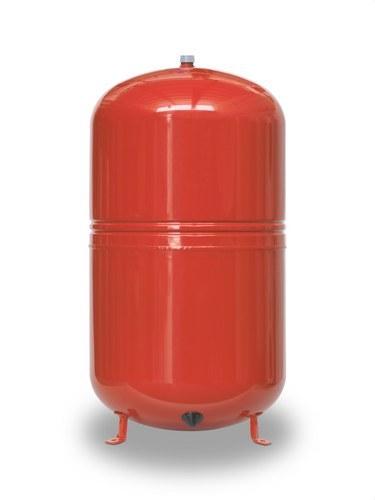

35 Litre Membrane Expansion Vessel CMF-P 3/4"

The Ibaiondo CMF-P expansion vessel, reference 02035345, is an essential component for closed heating and air conditioning systems. With a capacity of 35 litres, this expansion vessel is designed to absorb volume variations in the system caused by temperature changes, ensuring efficiency and safety in the operation of the installation. Made from high-quality steel, it features a red finish that provides long-lasting protection against corrosion.

The internal membrane, non-replaceable, complies with EN 13831 standards, ensuring optimal performance in heating and cooling systems, but is not suitable for potable water systems. The water connection is 3/4" type G.M, which facilitates its integration into different types of systems. The expansion vessel includes an inflation valve for regulating the pre-charge gas, which is set at 1.5 bar at the factory, allowing for adjustments according to the specific requirements of the system.

The Ibaiondo CMF-P is designed to withstand a maximum working pressure of 4 bar, with a test pressure of up to 6 bar, ensuring its reliability under demanding operating conditions. The service temperature range extends from -10°C to 100°C, making it suitable for a wide variety of applications in both residential and industrial heating and air conditioning systems.

Technical Specifications:

• Model: CMF-P Expansion Vessel.
• Reference: 02035345.
• Capacity: 35 litres.
• Material: Steel, with non-replaceable membrane.
• Water Connection: R 3/4" G.M.
• Maximum Working Pressure: 4 bar.
• Test Pressure: 6 bar.
• Factory Pre-charge: 1.5 bar.
• Service Temperature Range: -10°C to 100°C.
• Standards: EN 13831, Directive 2014/68/EU.
• Dimensions:
  • Diameter (ØD): 360 mm.
  • Height (H): 480 mm.
• Finish: Exterior paint in red.
• Warranty: 2 years.

Additional Benefits:

• Safety and Reliability: The non-replaceable membrane and steel construction provide a safe and durable solution for pressure management in closed systems.
• Wide Compatibility: Ideal for heating and air conditioning systems, with a suitable temperature range for different applications.
• Ease of Installation: Standard 3/4" connection and inflation valve to adjust the pre-charge pressure according to system needs.

The Ibaiondo CMF-P 35-litre expansion vessel is a reliable choice for maintaining the stability and safety of heating and cooling systems. Its robust design and compliance with standards ensure optimal performance, providing an efficient solution for pressure management in thermal installations.
