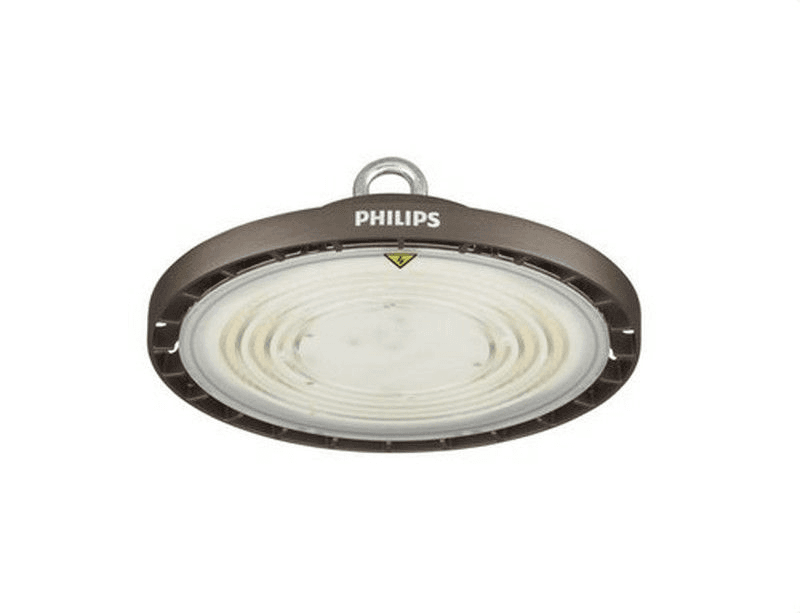

Philips Ledinaire BY020P G3 LED105S/840 PSU WB 70W Industrial LED High Bay 10,500 lm 4000K IP65

The Philips Ledinaire industrial LED high bay BY020P G3 LED105S/840 PSU WB GR, reference 76135300, is a high-efficiency luminaire designed for lighting industrial halls, warehouses, workshops, and other high-ceiling spaces. It delivers a luminous flux of 10,500 lumens with a consumption of only 70 watts, achieving an efficacy of 150 lumens per watt.

Its neutral white light of 4000 K, wide beam optic, die-cast aluminum body, and IP65 and IK06 protection ratings make it suitable for demanding professional environments. The luminaire includes the driver, operates directly at 220-240 volts, and is ready for suspended mounting.

Philips Ledinaire 10,500-lumen industrial LED high bay

The Philips Ledinaire BY020P G3 is part of the third generation of Ledinaire industrial high bays, a range developed to offer a simple and efficient solution for professional lighting in large spaces.

Reference 76135300 provides a nominal luminous flux of 10,500 lumens, making it possible to illuminate large areas from elevated positions and replace traditional solutions with higher energy consumption.

70-watt power and 150 lumens per watt efficacy

The luminaire has a nominal consumption of 70 watts and achieves a luminous efficacy of 150 lumens per watt.

This high ratio between luminous flux and electrical power helps reduce lighting consumption in industrial and commercial installations where luminaires remain on for long periods.

Neutral white light of 4000 K

The high bay uses an LED source with a color temperature of 4000 K, corresponding to a neutral white tone suitable for workspaces.

The 840 color code indicates a color temperature of 4000 K and a color rendering index above 80.

Color rendering index above 80

The Philips Ledinaire BY020P G3 offers a color rendering index above 80, providing suitable color representation for general industrial, logistics, and commercial lighting applications.

Wide beam optic for illuminating large areas

The BY020P G3 LED105S/840 PSU WB reference uses a wide beam optic. Philips specifies a light source beam angle of 116 degrees and a luminaire beam opening of 90 degrees.

This distribution supports broad illumination from elevated positions and allows large surfaces to be covered with uniform light distribution.

IP65 protection against dust and water

The luminaire has an IP65 protection rating, providing dust-tight sealing and protection against water jets.

This feature makes it suitable for installation in halls, warehouses, and other spaces where there may be airborne dust or where conditions are more demanding than in a conventional indoor installation.

IK06 mechanical resistance

The impact resistance rating is IK06, equivalent to an impact energy of 1 joule.

This mechanical protection provides greater robustness against minor accidental knocks during normal use in professional environments.

Die-cast aluminum body

The housing is made of die-cast aluminum with a gray finish and surface coating, combining mechanical strength with the ability to dissipate heat generated by the electronic components.

The optic and transparent cover are made of polycarbonate.

• Housing material: die-cast aluminum.
• Optic material: polycarbonate.
• Cover material: polycarbonate.
• Cover finish: transparent.
• Housing color: gray.

Compact 273-millimeter diameter format

The high bay features a compact circular design suitable for suspended installation in high-ceiling halls and spaces.

• Diameter: 273 millimeters.
• Height: 93 millimeters.
• Net weight: approximately 1.41 kilograms.

Its reduced weight simplifies handling during installation and limits the additional load on the suspension system.

Suspended mounting

The Philips Ledinaire BY020P G3 is designed for suspended mounting. This arrangement is especially suitable for industrial buildings, warehouses, and workshops with high ceilings.

The final installation position and height should be determined according to the required lighting level, the dimensions of the room, and the lighting study for each project.

Included LED driver

The luminaire is supplied with the integrated power supply gear, so no separate driver is required for operation.

The product is ready for direct connection to an AC supply between 220 and 240 volts.

Operation at 50 or 60 hertz

The luminaire is compatible with 50 or 60 hertz electrical networks, increasing its versatility for different installations.

The power factor specified by Philips is 0.95.

Non-dimmable

This PSU version is not dimmable. It is designed for conventional on/off operation, without an external dimming interface.

For installations that require dimming, sensors, or other control functions, specific variants of the family compatible with those features should be selected.

Included connection cable

The luminaire includes a cable of approximately 0.3 meters with a 3-pole connection, making installation wiring easier.

Philips specifies an inrush current of 40 amperes and an inrush time of approximately 600 microseconds.

Up to 8 luminaires on a 16-amp type B circuit breaker

According to the manufacturer’s datasheet, up to 8 luminaires of this reference can be connected to a 16-amp type B circuit breaker, considering the calculation conditions defined by Philips.

The final circuit sizing must take into account the actual installation, the protection devices, conductor cross-section, and the total number of connected units.

Operating temperature between -20 and 45 degrees Celsius

The industrial high bay can operate within an ambient temperature range from -20 to 45 degrees Celsius.

The reference ambient temperature used by the manufacturer to evaluate performance is 25 degrees Celsius.

Luminous flux maintenance

Philips specifies L85 lumen maintenance at 35,000 hours. This means that, under the established test conditions, the luminaire retains approximately 85 percent of its initial luminous flux after that period.

For a median useful life of 50,000 hours, the specified lumen maintenance is L80.

• Lumen maintenance at 35,000 hours: L85.
• Lumen maintenance at 50,000 hours: L80.
• Control gear failure rate at 35,000 hours: 2.74 percent.
• Control gear failure rate at 50,000 hours: 4 percent.

5-year warranty

Philips specifies a 5-year warranty period for this luminaire, in accordance with the manufacturer’s applicable warranty conditions.

Electrical protection class I

The BY020P G3 belongs to electrical protection class I, so protective earthing is required during installation.

Electrical wiring must be carried out in accordance with the manufacturer’s instructions and the regulations applicable to the project.

Photobiological safety

The luminaire is classified in photobiological risk group 1 according to EN 62778, evaluated at a distance of 0.2 meters.

It also complies with European RoHS requirements and carries CE marking.

Applications of the Philips Ledinaire BY020P G3

Its high luminous flux, wide beam optic, and high-bay format make this luminaire suitable for many professional spaces with high ceilings.

• Industrial halls.
• Warehouses and logistics centers.
• Workshops.
• Production areas.
• Garages and large technical spaces.
• Commercial installations with high ceilings.
• Indoor areas requiring IP65 protection.

Technical specifications of the Philips Ledinaire BY020P G3

• Brand: Philips.
• Manufacturer: Signify.
• Family: Ledinaire High Bay / Ledinaire High-bay.
• Model: BY020P G3 LED105S/840 PSU WB GR.
• Commercial reference: 76135300.
• Order code: 911401565044.
• Full product code: 872016976135300.
• Product type: industrial LED high bay.
• Power: 70 watts.
• Luminous flux: 10,500 lumens.
• Luminous efficacy: 150 lumens per watt.
• Color temperature: 4000 K.
• Light color: neutral white.
• Color code: 840.
• Color rendering index: above 80.
• Optic type: wide beam.
• Source beam angle: 116 degrees.
• Luminaire beam opening: 90 degrees.
• Supply voltage: between 220 and 240 volts.
• Frequency: 50 or 60 hertz.
• Power factor: 0.95.
• Inrush current: 40 amperes.
• Consumption: 70 watts.
• Driver included: yes.
• Dimmable: no.
• Connection type: cable.
• Supplied cable: approximately 0.3 meters, 3-pole.
• Housing material: die-cast aluminum.
• Optic material: polycarbonate.
• Cover material: polycarbonate.
• Color: gray.
• Protection rating: IP65.
• Impact resistance: IK06.
• Electrical protection class: class I.
• Mounting: suspended.
• Diameter: 273 millimeters.
• Height: 93 millimeters.
• Net weight: approximately 1.41 kilograms.
• Operating ambient temperature: between -20 and 45 degrees Celsius.
• Lumen maintenance at 35,000 hours: L85.
• Lumen maintenance at 50,000 hours: L80.
• Photobiological risk: group 1 according to EN 62778.
• CE marking: yes.
• RoHS compliant: yes.
• Warranty: 5 years according to manufacturer conditions.

Efficient LED high bay for halls and industrial spaces

The Philips Ledinaire BY020P G3 LED105S/840 PSU WB GR combines 10,500 lumens of luminous flux with only 70 watts of consumption, delivering an efficacy of 150 lumens per watt and a wide-beam light distribution especially suitable for large areas.

Its die-cast aluminum construction, IP65 protection, IK06 resistance, 4000 K neutral light, and compact 273-millimeter diameter make this LED high bay a practical solution for upgrading or equipping lighting systems in industrial halls, warehouses, workshops, and other high-ceiling professional spaces.
