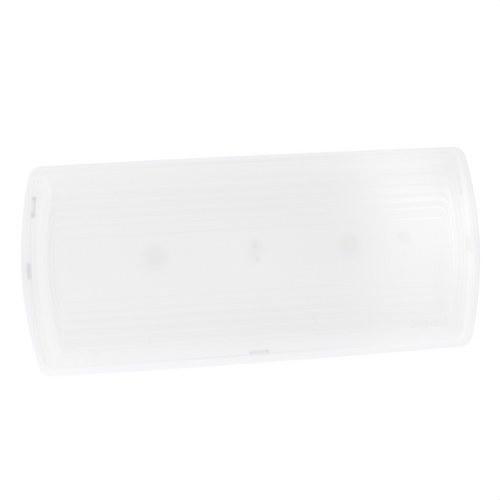

Legrand URA21 LED PLUS Emergency Light - 100 Lumens

The Legrand URA21 LED PLUS emergency luminaire is an efficient and reliable solution for ensuring safety in any space that requires emergency lighting. With a luminous flux of 100 lumens and an autonomy of 1 hour, this model offers high performance in situations where visibility is crucial, such as evacuations or power outages. Designed to operate in non-permanent mode, the luminaire only activates in the event of a power failure, which prolongs its lifespan and reduces energy consumption. Additionally, it is AENOR certified, ensuring its quality and safety in accordance with European standards.

The design of the opaline diffuser and the integration of high-power LEDs allow for uniform light distribution, ensuring that every corner of the covered area is well-lit in emergency situations. The URA21 LED PLUS luminaire has an extremely slim profile, with a depth of just 45 mm, making it easy to install in confined spaces. It can be mounted either on the surface or recessed, thanks to its compatibility with the mounting accessory reference 661720PL. This gives it great versatility, adapting to different types of installations.

Regarding connections, the luminaire is equipped with automatic terminals that allow for quick and easy installation, with capacity for two 2.5 mm² cables. It has 4 cable entries: one at the back and three on the sides, with an opening diameter of 20 mm, which simplifies its integration into any existing infrastructure. It operates at a nominal voltage of 230V and can work with Ni-Cd or Ni-Mh batteries, adding flexibility depending on the selected model.

The luminaire is primarily designed for indoor use, but if outdoor installation is required, it can be complemented with the waterproof box reference 661616, which raises its IP rating to IP65, protecting it against dust and water.

Key Advantages:

• Easy Installation: The luminaire retains the same fixing points as previous versions, allowing for quick and easy updates of existing installations. Additionally, the terminals are fixed to the base, facilitating assembly and connections.
• Compatibility: This model is compatible with the previous URA21 LED range, making updates or maintenance easy. It is also possible to convert it into a traditional version by changing the diffuser with reference 661721.
• Mounting Versatility: It can be installed in false ceilings or on the surface, depending on the space requirements, and easily adapted with its different cable entry points.

Technical Specifications:

• Luminous Flux: 100 lumens.
• Autonomy: 1 hour of continuous operation.
• Mounting Type: Surface or recessed with additional accessory.
• Diffuser: Opaline, with an ultra-flat design of 45 mm depth.
• Supply Voltage: 230 V +/- 10% at 50/60 Hz.
• Battery: Ni-Cd or Ni-Mh (depending on the model).
• Protection: IP42 protection class (IP65 with additional waterproof box) and IK07 for impact resistance.
• Dimensions: Length 210 mm, height 41 mm, width 110 mm.
• Material: White plastic housing, opaline plastic diffuser.
• Energy Consumption: Maximum system power of 1.3 W and standby consumption of 5.7 mA.
• Operating Temperature: -5°C to 35°C.

Usage Recommendations:

• The luminaire is ideal for indoor installations, whether in offices, corridors or common areas, where efficient lighting is required in case of emergencies. For outdoor use, it is necessary to add the waterproof box (ref. 661616) to ensure IP65 protection, making it a versatile option for any type of security lighting project.
