Daikin Perfera 3x1 Air Conditioner with WiFi 2.0 kW (2) + 3.5 kW

The Daikin Perfera 3x1 multisplit air conditioner with WiFi, 2.0 + 2.0 + 3.5 kW is a high-efficiency climate control solution designed to provide cooling and heating in three rooms using a single outdoor unit. This set combines two Daikin Perfera FTXM20B indoor units of 2.0 kW, one FTXM35B indoor unit of 3.5 kW, and one Daikin 3MXM52A8 outdoor unit with a nominal cooling capacity of 5.2 kW.

Thanks to its Inverter technology, heat pump with R-32 refrigerant and WiFi connectivity, it helps maintain a comfortable temperature all year round. Each indoor unit has independent temperature control, fan speed adjustment and scheduling, adapting to the needs of each room.

The Daikin Perfera range stands out for incorporating advanced air treatment technologies, such as Flash Streamer, a two-zone intelligent motion sensor and 3D airflow distribution. Its quiet operation and energy-saving functions make this system an especially attractive option for homes, apartments and offices that need to condition three spaces with different thermal requirements.

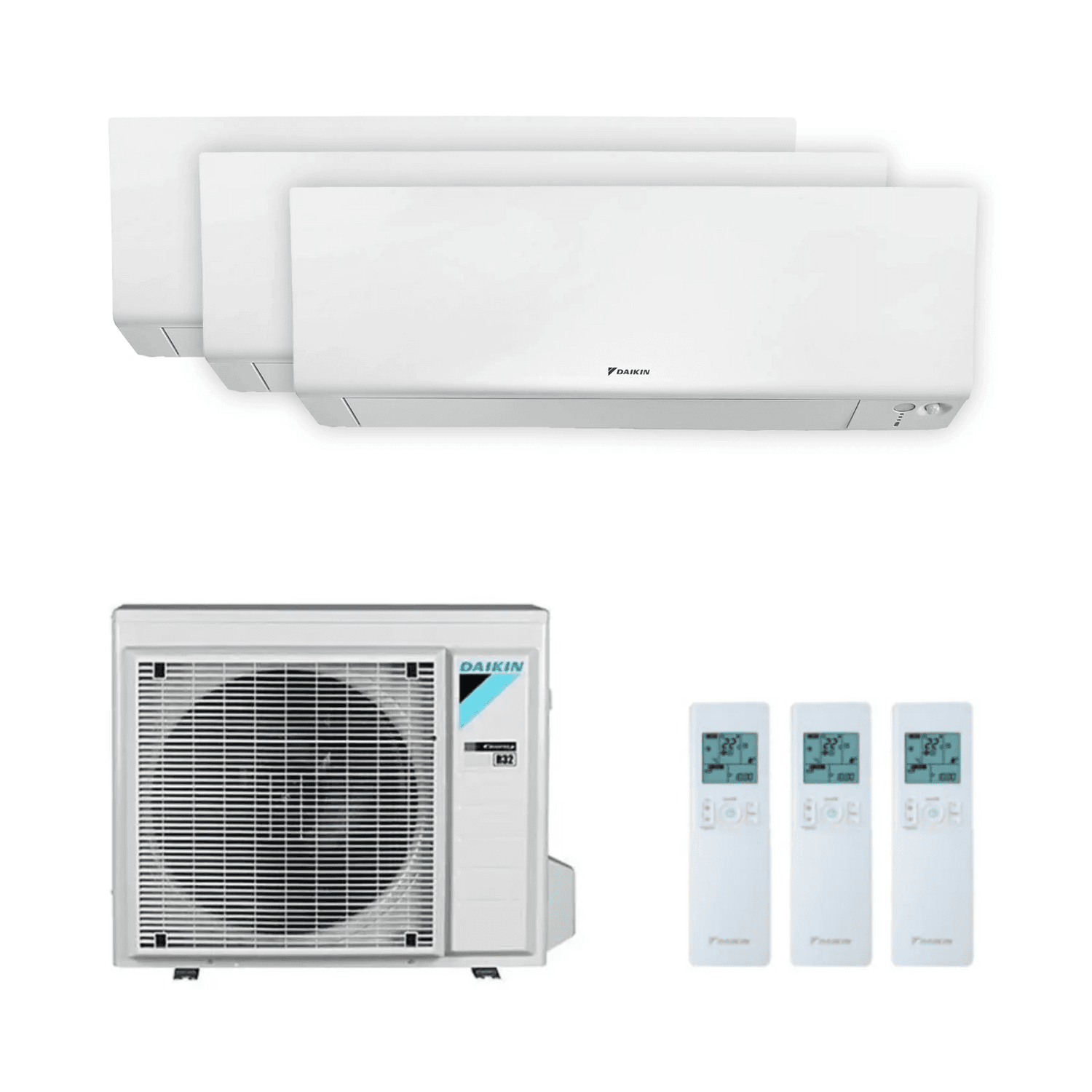

Composition of the Daikin Perfera 3x1 air conditioner

This multisplit set is made up of the following units:

• 2 Daikin Perfera FTXM20B indoor units: wall-mounted 2.0 kW cooling class units, equivalent to approximately 6,824 BTU/h per unit, commercially 7000 BTU. They feature WiFi, quiet operation, intelligent presence sensor and Flash Streamer technology.
• 1 Daikin Perfera FTXM35B indoor unit: wall-mounted 3.5 kW cooling class unit, equivalent to approximately 11,940 BTU/h, commercially 12000 BTU. Recommended for living rooms, dining rooms, large bedrooms and other rooms with higher thermal needs.
• 1 Daikin 3MXM52A8 outdoor unit: Inverter multisplit unit with three independent refrigerant connections, R-32 refrigerant and nominal capacity of 5.2 kW in cooling and 6.8 kW in heating.
• 3 Daikin ARC466A93 wireless remote controls: one for each indoor unit, to individually control temperature and the main climate control functions.

The 3x1 multisplit configuration allows three rooms to be conditioned with a single outdoor unit, reducing the space required on facades, balconies and terraces compared with installing three independent air conditioning systems.

Main advantages of the Daikin Perfera 3x1 air conditioner

Independent climate control for three rooms

The Daikin Perfera multisplit system allows the three indoor units to be controlled separately, adjusting the temperature, fan speed and operating schedules according to the needs of each room.

For example, the two 2.0 kW FTXM20B units can be installed in small bedrooms, children's rooms or home offices, while the 3.5 kW FTXM35B unit is intended for a larger bedroom or a living room.

The three units can operate simultaneously, although they must work in the same general cooling or heating mode. It is not possible to cool one room while heating another.

Smart WiFi control via Daikin Onecta

The Daikin Perfera FTXM20B and FTXM35B indoor units feature built-in WiFi connectivity for managing climate control from a smartphone or tablet using the Daikin Onecta app.

The app allows you to control each indoor unit individually from anywhere with an Internet connection.

Its main functions include:

• Individual on/off control of each indoor unit.
• Independent temperature adjustment for each room.
• Selection of cooling, heating, fan and dehumidification modes.
• Fan speed adjustment.
• Scheduling and weekly programming.
• Control of the main functions through compatible voice assistants, such as Amazon Alexa and Google Assistant.

WiFi control makes it easier to adapt operation to the daily habits of occupants and avoid unnecessary energy use in rooms that are not being used.

Flash Streamer technology to improve air quality

The Daikin Perfera indoor units incorporate Flash Streamer technology, designed to help reduce certain allergens and odors present in indoor air.

This technology is complemented by different filtration elements:

• Silver particle filter: helps capture certain allergens, such as pollen and dust mites.
• Titanium apatite deodorizing filter: helps reduce unpleasant odors.
• Air filter: traps dust particles present in the air circulating through the unit.

The combination of these technologies helps improve indoor air quality and provide a more comfortable environment in the conditioned rooms.

Two-zone intelligent motion sensor

The indoor units include a two-zone intelligent presence sensor that detects the location of people within the room and adjusts the direction of the airflow to reduce direct drafts on occupants.

When no presence is detected for a certain period, the system can automatically activate energy-saving operation, helping reduce electricity consumption.

Even air distribution with Comfort+ and 3D airflow

Daikin's Comfort+ technology uses dual flaps to improve air distribution and promote a homogeneous temperature throughout the room.

In addition, 3D airflow combines automatic vertical and horizontal movement to distribute cool or warm air across different areas of the room.

These functions help reduce temperature differences and provide greater thermal comfort during operation.

Ultra-quiet operation of only 19 dB(A)

One of the main features of the Daikin Perfera range is its quiet operation. Both FTXM20B indoor units and the FTXM35B unit achieve a minimum sound pressure of 19 dB(A) in silent cooling mode.

In heating mode, the three units can operate with a minimum sound pressure of 20 dB(A).

These sound levels make them especially suitable for bedrooms, children's rooms, home offices and other spaces where discreet climate control is desired.

Comfort and energy-saving functions

The Daikin Perfera indoor units include different modes to adapt operation to the needs of each moment:

• Powerful mode: temporarily increases output to reach the selected temperature more quickly.
• Econo mode: limits the unit's maximum power consumption.
• Silent mode: reduces fan speed to minimize operating noise.
• Night mode: adapts operation during rest hours.
• Dehumidification: helps reduce ambient humidity.
• Fan mode: allows air to circulate in the room without activating cooling or heating.
• Weekly programming: makes it easy to set personalized operating schedules.
• Automatic restart: restores settings after a power outage.
• Temperature limitation: allows setting regulation limits to avoid excessively high or low temperatures.

Cooling and heating capacity of the Daikin Perfera 3x1 set

The system combines two 2.0 kW class indoor units and one 3.5 kW class unit, whose sum of individual capacities is 7.5 kW. However, the combined nominal cooling capacity when the three indoor units operate simultaneously is 5.2 kW, determined by the performance of the 3MXM52A8 outdoor unit.

The available power is distributed among the indoor units depending on which ones are operating, the thermal demand and the environmental conditions.

Cooling capacity

According to the official Daikin technical tables for the 3MXM52A8 outdoor unit and the 2.0 + 2.0 + 3.5 kW class combination, the nominal reference values are:

• Minimum cooling capacity: 1.9 kW.
• Nominal cooling capacity: 5.2 kW, approximately 17,740 BTU/h.
• Maximum cooling capacity: 7.2 kW.
• Minimum electrical consumption in cooling: 0.39 kW.
• Nominal electrical consumption in cooling: 1.05 kW.
• Maximum reference electrical consumption in cooling: 2.17 kW.
• Calculated nominal EER: approximately 4.95.

When the three indoor units operate simultaneously under nominal conditions, the cooling capacity distribution is:

• First FTXM20B 2.0 kW unit: 1.39 kW.
• Second FTXM20B 2.0 kW unit: 1.39 kW.
• FTXM35B 3.5 kW unit: 2.43 kW.

When only one or two indoor units are operating, the available capacity can be redistributed among the rooms requiring climate control, always within the system's operating limits.

Heating capacity

The reversible heat pump allows the system to be used during the colder months, with a combined nominal heating capacity of 6.8 kW.

• Minimum heating capacity: 1.4 kW.
• Nominal heating capacity: 6.8 kW, approximately 23,200 BTU/h.
• Maximum heating capacity: 8.1 kW.
• Minimum electrical consumption in heating: 0.32 kW.
• Nominal electrical consumption in heating: 1.37 kW.
• Maximum reference electrical consumption in heating: 2.12 kW.
• Calculated nominal COP: approximately 4.96.

The nominal heating capacity distribution when the three indoor units operate simultaneously is:

• First FTXM20B 2.0 kW unit: 1.81 kW.
• Second FTXM20B 2.0 kW unit: 1.81 kW.
• FTXM35B 3.5 kW unit: 3.17 kW.

These values come from the official Daikin combination tables by power class published for the 3MXM52A8 outdoor unit. The distributed capacities are shown rounded and actual performance depends on indoor and outdoor temperatures, installation conditions and simultaneous operation.

Energy efficiency of the Daikin Perfera 3x1 air conditioner

The system uses Inverter technology to regulate compressor speed according to climate control needs, avoiding unnecessary starts and stops and promoting efficient electricity consumption.

The Daikin 3MXM-A8 outdoor range achieves an energy rating of up to A+++ in cooling and A++ in heating, according to the commercial technical information published by the manufacturer for this multisplit unit family.

As a reference, Daikin publishes the following seasonal efficiency values for the equivalent 20 + 20 + 35 class combination with FTXM-A indoor units:

• Reference cooling energy class for the FTXM-A combination: A+++.
• Reference heating energy class for the FTXM-A combination in average climate: A+++.
• Reference SEER: 8.51.
• Reference SCOP in average climate: 5.10.
• Cooling design load (Pdesignc): 5.2 kW.
• Heating design load for average climate (Pdesignh): 5.0 kW.
• Reference normalized annual energy consumption in cooling: 214 kWh/year.
• Reference normalized annual energy consumption in heating for average climate: 1,373 kWh/year.

SEER and SCOP indicators express the seasonal energy performance of the system. The higher the value, the greater the amount of thermal energy supplied for each unit of electrical energy consumed under standardized calculation conditions.

Annual consumption figures are normalized values used to compare equipment and do not represent the guaranteed actual consumption of a home. This will depend on insulation, selected temperatures, operating hours and weather conditions.

Important regarding energy efficiency: the SEER 8.51 and SCOP 5.10 values and the A+++ ratings indicated above correspond to the FTXM-A generation combination, not to a certified energy label for FTXM20B + FTXM20B + FTXM35B. The specific rating for the FTXM-B generation must be confirmed using the official label supplied with the set.

Technical features of the Daikin FTXM20B 2.0 kW indoor units

The set includes two Daikin Perfera FTXM20B indoor units, designed to condition bedrooms, offices and rooms with moderate thermal needs.

The following specifications correspond to each of the two indoor units:

• Brand: Daikin.
• Series: Perfera.
• Reference: FTXM20B.
• Quantity: 2 units.
• Type: wall-mounted indoor unit.
• Color: white.
• Cooling capacity class: 2.0 kW.
• Cooling equivalent: approximately 6,824 BTU/h, commercially 7000 BTU.
• Dimensions (H × W × D): 298 × 804 × 252 mm.
• Weight per unit: 11.5 kg.
• Nominal electrical consumption of each indoor unit in cooling: 0.019 kW.
• Nominal electrical consumption of each indoor unit in heating: 0.018 kW.
• Airflow in cooling (high/medium/low/silent): 11.9 / 8.9 / 6.3 / 4.9 m³/min.
• Airflow in heating (high/medium/low/silent): 11.4 / 9.2 / 6.9 / 4.9 m³/min.
• Sound pressure in cooling (high/medium/low/silent): 41 / 33 / 25 / 19 dB(A).
• Sound pressure in heating (high/medium/low/silent): 39 / 34 / 26 / 20 dB(A).
• Sound power in cooling: 54 dB(A).
• Sound power in heating: 53 dB(A).
• Liquid refrigerant connection: 1/4" (6.4 mm).
• Gas refrigerant connection: 3/8" (9.5 mm).
• Condensate drain connection: 16 mm.
• Wireless remote control: ARC466A93.
• Connectivity: built-in WiFi with Daikin Onecta app.
• Comfort technologies: Comfort+, two-zone intelligent motion sensor and 3D airflow.
• Air treatment: Flash Streamer, silver particle filter and titanium apatite deodorizing filter.
• Additional functions: Powerful mode, Econo mode, silent operation, fan, dehumidification and weekly programming.

Technical features of the Daikin FTXM35B 3.5 kW indoor unit

The Daikin Perfera FTXM35B indoor unit has a 3.5 kW cooling capacity class, making it especially suitable for living rooms, dining rooms, large bedrooms and other spaces with greater climate control needs.

• Brand: Daikin.
• Series: Perfera.
• Reference: FTXM35B.
• Quantity: 1 unit.
• Type: wall-mounted indoor unit.
• Color: white.
• Cooling capacity class: 3.5 kW.
• Cooling equivalent: approximately 11,940 BTU/h, commercially 12000 BTU.
• Dimensions (H × W × D): 298 × 804 × 252 mm.
• Weight: 11.5 kg.
• Nominal electrical consumption of the indoor unit in cooling: 0.029 kW.
• Nominal electrical consumption of the indoor unit in heating: 0.019 kW.
• Airflow in cooling (high/medium/low/silent): 13.2 / 9.4 / 7.1 / 4.6 m³/min.
• Airflow in heating (high/medium/low/silent): 11.1 / 9.4 / 6.9 / 5.1 m³/min.
• Sound pressure in cooling (high/medium/low/silent): 45 / 37 / 29 / 19 dB(A).
• Sound pressure in heating (high/medium/low/silent): 39 / 35 / 28 / 20 dB(A).
• Sound power in cooling: 58 dB(A).
• Sound power in heating: 53 dB(A).
• Liquid refrigerant connection: 1/4" (6.4 mm).
• Gas refrigerant connection: 3/8" (9.5 mm).
• Condensate drain connection: 16 mm.
• Wireless remote control: ARC466A93.
• Connectivity: built-in WiFi with Daikin Onecta app.
• Comfort technologies: Comfort+, two-zone intelligent motion sensor and 3D airflow.
• Air treatment: Flash Streamer, silver particle filter and titanium apatite deodorizing filter.
• Additional functions: Powerful mode, Econo mode, silent operation, fan, dehumidification and weekly programming.

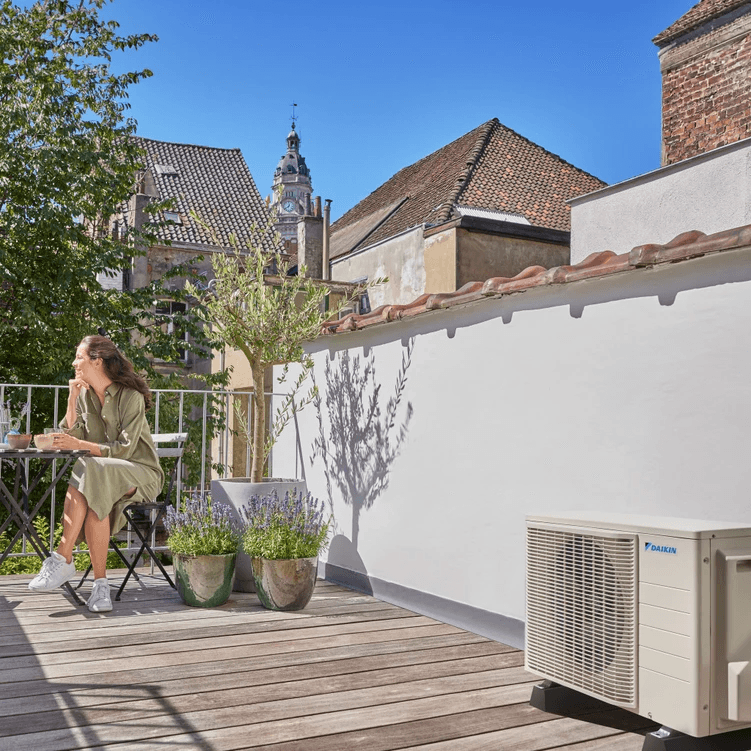

Technical features of the Daikin 3MXM52A8 outdoor unit

The Daikin 3MXM52A8 outdoor unit is an Inverter multisplit heat pump designed to connect up to three compatible indoor units through independent refrigerant circuits.

It features a hermetically sealed Swing compressor that adapts its operation to the thermal demand of the rooms, providing cooling and heating using R-32 refrigerant.

• Brand: Daikin.
• Reference: 3MXM52A8.
• Type: 3x1 multisplit outdoor unit.
• Number of connections for indoor units: 3.
• Nominal cooling capacity of the set: 5.2 kW.
• Nominal heating capacity of the set: 6.8 kW.
• Maximum total capacity of connectable indoor classes: 9.0 kW.
• Total indoor class capacity in this set: 7.5 kW.
• Technology: Inverter.
• Compressor: hermetically sealed Swing compressor.
• Refrigerant: R-32.
• Factory refrigerant charge: 1.80 kg.
• Global warming potential (GWP): 675.
• CO₂ equivalent of the factory charge: approximately 1.22 tonnes.
• Dimensions (H × W × D): 734 × 974 × 408 mm.
• Weight: 57 kg.
• Nominal sound pressure in cooling: 46 dB(A).
• Nominal sound pressure in heating: 47 dB(A).
• Power supply: single-phase, 220-240 V, 50 Hz.
• Recommended circuit breaker protection in the manual: 20 A, subject to electrical calculation and current regulations.
• Outdoor operating temperature in cooling: from -10 °C to +50 °C.
• Outdoor operating temperature in heating: from -20 °C to +24 °C, under dry-bulb temperature conditions according to the manual.
• Maximum pipe length per indoor unit: 25 meters.
• Maximum total refrigerant piping length: 50 meters.

The operating ranges indicate the outdoor temperatures within which the unit is designed to operate. Available capacity and efficiency may vary under extreme temperature conditions.

Refrigerant connections of the Daikin Perfera 3x1

The Daikin Perfera 3x1 multisplit air conditioner has three independent refrigerant circuits that connect the two FTXM20B indoor units and the FTXM35B unit to the 3MXM52A8 outdoor unit.

Connection diameters of the indoor units

All three indoor units have the same refrigerant connection diameters:

• First FTXM20B 2.0 kW unit: 1/4" liquid connection (6.4 mm) and 3/8" gas connection (9.5 mm).
• Second FTXM20B 2.0 kW unit: 1/4" liquid connection (6.4 mm) and 3/8" gas connection (9.5 mm).
• FTXM35B 3.5 kW unit: 1/4" liquid connection (6.4 mm) and 3/8" gas connection (9.5 mm).

Connection diameters of the outdoor unit

The Daikin 3MXM52A8 outdoor unit has three 1/4" liquid refrigerant ports, while the gas connection diameters are as follows:

• Port A: 1/4" liquid (6.4 mm) and 3/8" gas (9.5 mm).
• Port B: 1/4" liquid (6.4 mm) and 1/2" gas (12.7 mm).
• Port C: 1/4" liquid (6.4 mm) and 1/2" gas (12.7 mm).

Important about the connections: the three indoor units in this set have 3/8" gas connections, while ports B and C on the outdoor unit have a 1/2" diameter. For this reason, the corresponding 1/2" to 3/8" refrigerant reducers will be required to connect these two circuits correctly.

Daikin's manual identifies reducers 2 and 4 to adapt the 1/2" connections to 3/8" gas piping. The outdoor unit includes a reducer set among its standard accessories, but the installer must verify that all necessary adapters are available for the installation.

It will also be necessary to respect the correspondence between the refrigerant and electrical connections of each indoor unit, following the manufacturer's official diagram.

Maximum pipe length and permitted height differences

To ensure correct operation of the Daikin Perfera 3x1 system, the installation must respect the maximum refrigerant pipe lengths and height differences established by Daikin.

• Maximum pipe length per indoor unit: 25 meters.
• Maximum total refrigerant piping length: 50 meters, adding the three runs together.
• Minimum pipe length per indoor unit: 3 meters.
• Maximum height difference between outdoor and indoor units when the outdoor unit is above: 15 meters.
• Maximum height difference between indoor units when the outdoor unit is above: 7.5 meters.
• Maximum height difference between outdoor and indoor units when the outdoor unit is below: 7.5 meters.
• Maximum height difference between indoor units when the outdoor unit is below: 15 meters.
• Total length covered by the factory refrigerant charge: 30 meters of liquid piping.
• Additional refrigerant charge: 20 grams per additional meter when the total length exceeds 30 meters, applying the calculation and rounding procedure indicated by Daikin.
• Maximum permitted total refrigerant charge: 2.2 kg.

For example, an installation can be carried out with refrigerant runs of 10, 15 and 20 meters, resulting in a total length of 45 meters. This distribution complies with the maximum lengths established by the manufacturer, although the height differences and other technical conditions must also be checked.

When exceeding the 30 meters covered by the factory charge, it will be necessary to calculate and add the corresponding amount of R-32 refrigerant. For a total length of 45 meters, the calculation would be 300 grams additional, following the procedure established in the Daikin manual.

Refrigerant length refers to the one-way run of the liquid pipe between the units, without adding again the length of the gas pipe in the same circuit.

Insulation of refrigerant piping

Daikin establishes specific requirements for the thermal insulation of refrigerant piping, in order to reduce energy losses and prevent condensation.

• 1/4" liquid pipes: insulation with a minimum thickness of 10 mm.
• 3/8" gas pipes: insulation with a minimum thickness of 13 mm.
• Material: polyethylene foam suitable for refrigeration installations, with thermal resistance of at least 120 °C.
• Copper pipes: seamless copper, phosphorus deoxidized and suitable for R-32 refrigerant.
• Minimum wall thickness of 1/4" and 3/8" pipes: 0.8 mm, subject to applicable regulatory and pressure requirements.

When the ambient temperature exceeds 30 °C and relative humidity is above 80%, Daikin specifies an insulation thickness of at least 20 mm to prevent surface condensation.

The installer must also check the condition of the refrigerant piping, condensate drainage, electrical supply and the necessary clearances around the outdoor unit.

What spaces is the Daikin Perfera 3x1 2.0 + 2.0 + 3.5 kW recommended for?

The Daikin Perfera 3x1 multisplit 2.0 + 2.0 + 3.5 kW is especially suitable for homes and offices that need to condition three rooms with different thermal requirements.

A common layout may consist of installing the two 2.0 kW FTXM20B units in small bedrooms, children's rooms or offices, while the 3.5 kW FTXM35B unit is used in a living room, dining room or larger bedroom.

As a commercial guideline, the 2.0 kW units may be suitable for rooms of approximately 12 to 20 m², while the 3.5 kW unit can be used in rooms of approximately 25 to 35 m².

These surface areas are indicative and do not replace a thermal load calculation. The actual climate control capacity will depend on insulation, orientation, ceiling height, glazed surface, occupancy and weather conditions.

It is also important to bear in mind that, when the three indoor units operate simultaneously, the available power is distributed according to the system's total capacity, 5.2 kW in cooling and 6.8 kW in heating.

To ensure proper sizing, it is recommended that a professional calculate the cooling and heating needs of each room before installation.

Installation and required materials

The Daikin Perfera 3x1 set consists of two FTXM20B indoor units, one FTXM35B indoor unit and one 3MXM52A8 outdoor unit, together with their corresponding remote controls and the standard accessories supplied by the manufacturer.

The materials required for installation are not included in the set. Depending on the characteristics of each home or premises, copper refrigerant piping, insulation, electrical and interconnection wiring, condensate drain pipes, trunking, outdoor unit supports and fixing elements will be required.

It will also be necessary to check the correct use of the refrigerant reducers to adapt the gas connections of ports B and C on the outdoor unit, as well as verify the correspondence between the refrigerant and electrical connections of each indoor unit.

The installation must respect the maximum pipe lengths, height differences, refrigerant connections and power supply conditions established by Daikin.

The installation must be carried out by qualified professionals accredited to work with climate control equipment using fluorinated gases, in compliance with current regulations and the manufacturer's official technical instructions.

With its ability to condition three rooms, independent WiFi control, Inverter technology, quiet operation and advanced air treatment technologies, the Daikin Perfera multisplit 3x1 air conditioner FTXM20B + FTXM20B + FTXM35B + 3MXM52A8 offers a versatile climate control solution for enjoying cooling and heating all year round.
