3-in-1 Air Conditioner with WiFi Daikin Perfera 2.0 kW + 2.5 kW + 3.5 kW

The Daikin Perfera 3x1 multisplit air conditioner with WiFi, 2.0 + 2.5 + 3.5 kW is a climate control solution designed to provide cooling and heating in three rooms using a single outdoor unit. This set combines a Daikin Perfera FTXM20B indoor unit of 2.0 kW, an FTXM25B indoor unit of 2.5 kW, an FTXM35B indoor unit of 3.5 kW, and a Daikin 3MXM68A8 outdoor unit with a nominal cooling capacity of 6.8 kW.

Thanks to its Inverter technology, heat pump with R-32 refrigerant and WiFi connectivity, it allows you to enjoy a comfortable temperature all year round. Each indoor unit has independent temperature control, fan speed and scheduling, adapting to the needs of each room.

The Daikin Perfera range stands out for incorporating advanced air treatment technologies, such as Flash Streamer, two-zone intelligent motion sensor and 3D airflow distribution. Its quiet operation and energy-saving functions make this system a particularly interesting option for homes, apartments, studios and offices that need to condition three spaces with different thermal requirements.

Daikin Perfera 3x1 air conditioner composition

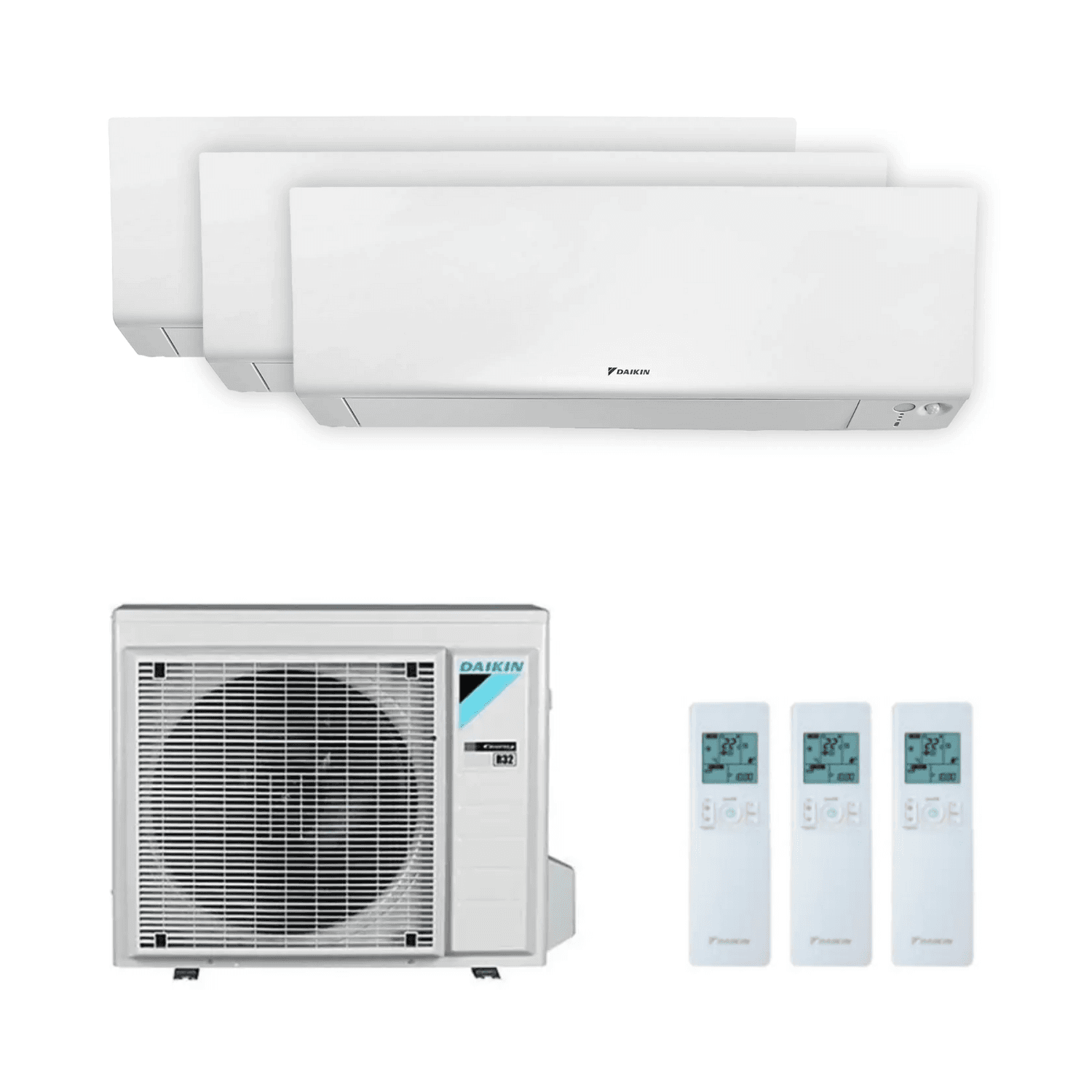

This multisplit set is made up of the following units:

• 1 Daikin Perfera FTXM20B indoor unit: wall-mounted unit with 2.0 kW cooling class, equivalent to approximately 6,824 BTU/h, commercially 7000 BTU. It features WiFi, quiet operation, intelligent presence sensor and Flash Streamer technology.
• 1 Daikin Perfera FTXM25B indoor unit: wall-mounted unit with 2.5 kW cooling class, equivalent to approximately 8,530 BTU/h, commercially 9000 BTU. Suitable for bedrooms, offices and rooms with moderate thermal requirements.
• 1 Daikin Perfera FTXM35B indoor unit: wall-mounted unit with 3.5 kW cooling class, equivalent to approximately 11,940 BTU/h, commercially 12000 BTU. Recommended for living rooms, dining rooms, large bedrooms and other rooms with higher air conditioning needs.
• 1 Daikin 3MXM68A8 outdoor unit: Inverter multisplit unit with three independent refrigerant connections, R-32 refrigerant and a nominal capacity of 6.8 kW in cooling and 8.6 kW in heating.
• 3 Daikin ARC466A93 wireless remote controls: one for each indoor unit, to individually control temperature and the main air conditioning functions.

The 3x1 multisplit configuration allows you to condition three rooms with a single outdoor unit, reducing the space required on façades, terraces and balconies compared with installing three separate air conditioning systems.

Main advantages of the Daikin Perfera 3x1 air conditioner

Independent climate control for three rooms

The Daikin Perfera multisplit system allows the three indoor units to be controlled separately, adjusting temperature, fan speed and operating schedules according to the needs of each room.

For example, the 2.0 kW FTXM20B unit can be installed in a small bedroom or office, the 2.5 kW FTXM25B unit in a larger bedroom and the 3.5 kW FTXM35B unit in a living room or dining room.

The three units can operate simultaneously, although they must work in the same general cooling or heating mode. It is not possible to cool one room while heating another.

Smart WiFi control via Daikin Onecta

The Daikin Perfera FTXM20B, FTXM25B and FTXM35B indoor units feature WiFi connectivity so you can manage climate control from a smartphone or tablet using the Daikin Onecta app.

The app allows you to control each indoor unit individually from anywhere with an Internet connection.

Its main functions include:

• Individual on/off control of each indoor unit.
• Independent temperature adjustment for each room.
• Selection of cooling, heating, fan and dehumidification modes.
• Adjustment of fan speed and airflow distribution.
• Setting schedules and weekly programming.
• Access to the energy control functions available in the app.
• Control of the main functions through compatible voice assistants, such as Amazon Alexa and Google Assistant.

WiFi control allows the system to be adapted to the daily habits of the occupants, avoiding unnecessary consumption in rooms that are not being used.

Flash Streamer technology to improve air quality

The Daikin Perfera indoor units incorporate Flash Streamer technology, which uses high-speed electron discharge to help reduce certain allergens and odours present in indoor air.

This technology is complemented by different filtration systems:

• Silver particle filter: helps capture certain allergens, such as pollen and dust mites.
• Titanium apatite deodorising filter: helps reduce unpleasant odours.
• Air filter: traps dust particles present in the air circulating through the unit.

The combination of these technologies helps improve indoor air quality and provides a more comfortable environment in the conditioned rooms.

Two-zone intelligent motion sensor

The indoor units incorporate a two-zone intelligent presence sensor that detects the location of people within the room and adapts the direction of the airflow to reduce direct drafts on occupants.

When no presence is detected for a certain period, the unit can automatically activate energy-saving operation, helping to reduce electricity consumption.

Even air distribution with Comfort+ and 3D airflow

Daikin's Comfort+ technology uses dual flaps to improve air distribution in the room and promote a more even temperature.

In addition, 3D airflow combines automatic vertical and horizontal movement to distribute cool or warm air throughout different areas of the room.

These functions help reduce temperature differences within the room and provide greater thermal comfort during operation.

Ultra-quiet operation from just 19 dB(A)

One of the main features of the Daikin Perfera range is its quiet operation. The FTXM20B, FTXM25B and FTXM35B indoor units achieve a minimum sound pressure of 19 dB(A) in quiet cooling mode.

In heating mode, the three units can operate with a minimum sound pressure of 20 dB(A).

These sound levels make them a suitable option for bedrooms, children's rooms, offices and other spaces where discreet climate control is desired.

Comfort and energy-saving functions

The Daikin Perfera indoor units include different modes to adapt operation to the needs of each moment:

• Powerful mode: temporarily increases performance to reach the selected temperature more quickly.
• Econo mode: limits the unit's maximum electricity consumption.
• Quiet mode: reduces fan speed to minimise operating noise.
• Night mode: adapts operation during rest hours.
• Dehumidification: helps reduce ambient humidity.
• Fan mode: allows air to circulate in the room without activating cooling or heating.
• Weekly programming: makes it easy to set personalised operating schedules.
• Auto restart: restores the settings after a power outage.
• Temperature limitation: allows regulation limits to be set to avoid excessively high or low temperatures.

Cooling and heating capacity of the Daikin Perfera 3x1 set

The system combines three indoor units of 2.0, 2.5 and 3.5 kW class, whose sum of individual capacities is 8.0 kW. However, the combined nominal cooling capacity when the three indoor units operate simultaneously is 6.8 kW, determined by the performance of the 3MXM68A8 outdoor unit.

The available capacity is distributed among the indoor units depending on which ones are operating, the thermal demand and the environmental conditions.

Cooling capacity

According to Daikin's official technical tables for the 3MXM68A8 outdoor unit and the 2.0 + 2.5 + 3.5 kW class combination, the nominal reference values are:

• Minimum cooling capacity: 1.96 kW.
• Nominal cooling capacity: 6.8 kW, approximately 23,200 BTU/h.
• Maximum cooling capacity: 7.74 kW.
• Minimum power consumption in cooling: 0.36 kW.
• Nominal power consumption in cooling: 1.76 kW.
• Maximum reference power consumption in cooling: 2.31 kW.
• Calculated nominal EER: approximately 3.86.

When the three indoor units operate simultaneously under nominal conditions, the cooling capacity distribution indicated for this class combination is:

• FTXM20B 2.0 kW unit: 1.70 kW.
• FTXM25B 2.5 kW unit: 2.13 kW.
• FTXM35B 3.5 kW unit: 2.98 kW.

The individual distribution capacities are rounded according to Daikin documentation. When only one or two indoor units are operating, the available capacity adapts to the demand of the rooms in use, within the system limits.

Heating capacity

The reversible heat pump allows the system to be used during the colder months, with a combined nominal heating capacity of 8.6 kW.

• Minimum heating capacity: 2.40 kW.
• Nominal heating capacity: 8.6 kW, approximately 29,340 BTU/h.
• Maximum heating capacity: 10.63 kW.
• Minimum power consumption in heating: 0.46 kW.
• Nominal power consumption in heating: 2.02 kW.
• Maximum reference power consumption in heating: 2.65 kW.
• Calculated nominal COP: approximately 4.26.

The nominal heating capacity distribution when the three indoor units operate simultaneously is:

• FTXM20B 2.0 kW unit: 2.15 kW.
• FTXM25B 2.5 kW unit: 2.69 kW.
• FTXM35B 3.5 kW unit: 3.76 kW.

These values come from Daikin's official technical tables for the 20 + 25 + 35 class combination with the 3MXM68A8 outdoor unit. Actual performance will depend on indoor and outdoor temperatures, installation conditions and simultaneous operation.

Energy efficiency of the Daikin Perfera 3x1 air conditioner

The system uses Inverter technology to regulate compressor speed according to climate control needs, avoiding unnecessary starts and stops and promoting efficient electricity consumption.

For the Daikin 3MXM68A8 outdoor unit, the commercial reference classifications for this multisplit family are A++ in cooling and A+ in heating for average climate, depending on the indoor units installed.

Its main energy features include:

• Reference energy class in cooling: A++.
• Reference energy class in heating for average climate: A+.
• Commercial reference SEER for the range: approximately 7.70.
• Commercial reference SCOP for the range in average climate: approximately 4.12.
• Nominal cooling capacity of the 20 + 25 + 35 class combination: 6.8 kW.
• Nominal heating capacity of the combination: 8.6 kW.
• Technology: Inverter with Swing compressor.
• Refrigerant: R-32.
• Independent control: allows you to condition only the rooms that need it.
• Econo mode: limits the unit's maximum electricity consumption.

SEER and SCOP indicators express the seasonal energy performance of air conditioning equipment. The higher the value, the greater the amount of thermal energy supplied per unit of electrical energy consumed under standardised calculation conditions.

Important about energy efficiency: the reference seasonal values indicated correspond to commercial information for the 3MXM68A8 range and do not constitute a certified energy label for the FTXM20B + FTXM25B + FTXM35B combination. The final classification of the set must be confirmed using the official energy documentation corresponding to these exact references.

Technical features of the Daikin FTXM20B 2.0 kW indoor unit

The Daikin Perfera FTXM20B indoor unit is a compact wall-mounted unit designed to condition bedrooms, children's rooms, offices and other rooms with moderate thermal requirements.

• Brand: Daikin.
• Series: Perfera.
• Reference: FTXM20B.
• Quantity: 1 unit.
• Type: wall-mounted indoor unit.
• Colour: white.
• Cooling capacity class: 2.0 kW.
• Cooling equivalent: approximately 6,824 BTU/h, commercially 7000 BTU.
• Dimensions (H × W × D): 298 × 804 × 252 mm.
• Weight: 11.5 kg.
• Nominal power consumption of the indoor unit in cooling: 0.019 kW.
• Nominal power consumption of the indoor unit in heating: 0.018 kW.
• Airflow in cooling (high/medium/low/quiet): 11.9 / 8.9 / 6.3 / 4.9 m³/min.
• Airflow in heating (high/medium/low/quiet): 11.4 / 9.2 / 6.9 / 4.9 m³/min.
• Sound pressure in cooling (high/medium/low/quiet): 41 / 33 / 25 / 19 dB(A).
• Sound pressure in heating (high/medium/low/quiet): 39 / 34 / 26 / 20 dB(A).
• Sound power in cooling: 54 dB(A).
• Sound power in heating: 53 dB(A).
• Liquid refrigerant connection: 1/4" (6.4 mm).
• Gas refrigerant connection: 3/8" (9.5 mm).
• Condensate drain connection: 16 mm.
• Wireless remote control: ARC466A93.
• Connectivity: WiFi via Daikin Onecta.
• Comfort technologies: Comfort+, two-zone intelligent motion sensor and 3D airflow.
• Air treatment: Flash Streamer, silver particle filter and titanium apatite deodorising filter.
• Additional functions: Powerful mode, Econo mode, quiet operation, fan, dehumidification and weekly programming.

Technical features of the Daikin FTXM25B 2.5 kW indoor unit

The Daikin Perfera FTXM25B indoor unit is designed to provide efficient climate control in bedrooms, offices and other small or medium-sized rooms, combining quiet operation with WiFi control.

• Brand: Daikin.
• Series: Perfera.
• Reference: FTXM25B.
• Quantity: 1 unit.
• Type: wall-mounted indoor unit.
• Colour: white.
• Cooling capacity class: 2.5 kW.
• Cooling equivalent: approximately 8,530 BTU/h, commercially 9000 BTU.
• Dimensions (H × W × D): 298 × 804 × 252 mm.
• Weight: 11.5 kg.
• Nominal power consumption of the indoor unit in cooling: 0.019 kW.
• Nominal power consumption of the indoor unit in heating: 0.018 kW.
• Airflow in cooling (high/medium/low/quiet): 11.9 / 8.9 / 6.3 / 4.9 m³/min.
• Airflow in heating (high/medium/low/quiet): 11.4 / 9.2 / 6.9 / 4.9 m³/min.
• Sound pressure in cooling (high/medium/low/quiet): 41 / 33 / 25 / 19 dB(A).
• Sound pressure in heating (high/medium/low/quiet): 39 / 34 / 27 / 20 dB(A).
• Sound power in cooling: 54 dB(A).
• Sound power in heating: 53 dB(A).
• Liquid refrigerant connection: 1/4" (6.4 mm).
• Gas refrigerant connection: 3/8" (9.5 mm).
• Condensate drain connection: 16 mm.
• Wireless remote control: ARC466A93.
• Connectivity: WiFi via Daikin Onecta.
• Comfort technologies: Comfort+, two-zone intelligent motion sensor and 3D airflow.
• Air treatment: Flash Streamer, silver particle filter and titanium apatite deodorising filter.
• Additional functions: Powerful mode, Econo mode, quiet operation, fan, dehumidification and weekly programming.

Technical features of the Daikin FTXM35B 3.5 kW indoor unit

The Daikin Perfera FTXM35B indoor unit has a 3.5 kW cooling capacity class, making it especially suitable for living rooms, dining rooms, large bedrooms and other rooms with higher air conditioning needs.

• Brand: Daikin.
• Series: Perfera.
• Reference: FTXM35B.
• Quantity: 1 unit.
• Type: wall-mounted indoor unit.
• Colour: white.
• Cooling capacity class: 3.5 kW.
• Cooling equivalent: approximately 11,940 BTU/h, commercially 12000 BTU.
• Dimensions (H × W × D): 298 × 804 × 252 mm.
• Weight: 11.5 kg.
• Nominal power consumption of the indoor unit in cooling: 0.029 kW.
• Nominal power consumption of the indoor unit in heating: 0.019 kW.
• Airflow in cooling (high/medium/low/quiet): 13.2 / 9.4 / 7.1 / 4.6 m³/min.
• Airflow in heating (high/medium/low/quiet): 11.1 / 9.4 / 6.9 / 5.1 m³/min.
• Sound pressure in cooling (high/medium/low/quiet): 45 / 37 / 29 / 19 dB(A).
• Sound pressure in heating (high/medium/low/quiet): 39 / 35 / 28 / 20 dB(A).
• Sound power in cooling: 58 dB(A).
• Sound power in heating: 53 dB(A).
• Liquid refrigerant connection: 1/4" (6.4 mm).
• Gas refrigerant connection: 3/8" (9.5 mm).
• Condensate drain connection: 16 mm.
• Wireless remote control: ARC466A93.
• Connectivity: WiFi via Daikin Onecta.
• Comfort technologies: Comfort+, two-zone intelligent motion sensor and 3D airflow.
• Air treatment: Flash Streamer, silver particle filter and titanium apatite deodorising filter.
• Additional functions: Powerful mode, Econo mode, quiet operation, fan, dehumidification and weekly programming.

Technical features of the Daikin 3MXM68A8 outdoor unit

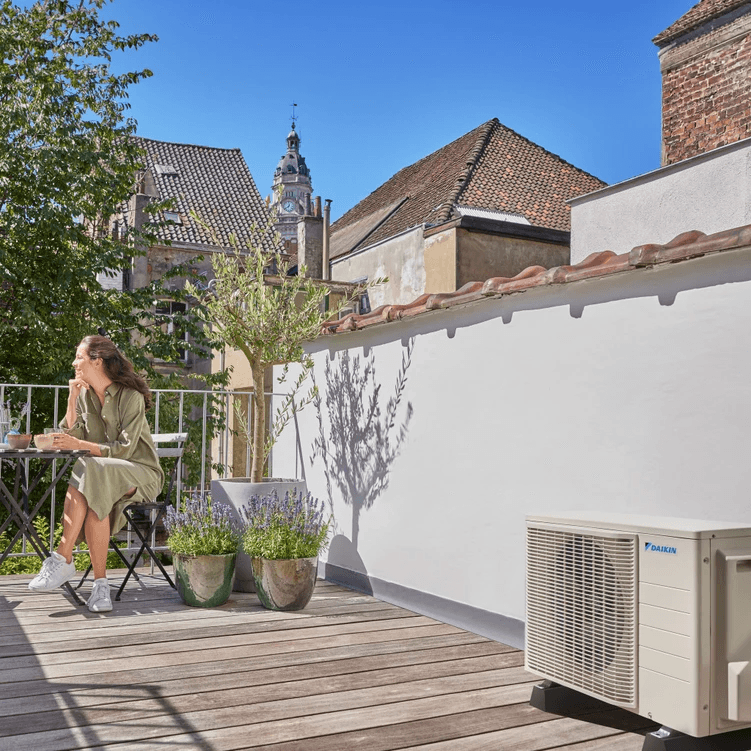

The Daikin 3MXM68A8 outdoor unit is a multisplit Inverter heat pump designed to connect up to three compatible indoor units through independent refrigerant circuits.

It has a hermetically sealed Swing compressor that adapts its operation to the thermal demand of the rooms, providing cooling and heating using R-32 refrigerant.

• Brand: Daikin.
• Reference: 3MXM68A8.
• Type: 3x1 multisplit outdoor unit.
• Number of connections for indoor units: 3.
• Nominal cooling capacity of the set: 6.8 kW.
• Nominal heating capacity of the set: 8.6 kW.
• Total maximum capacity of connectable indoor classes: 11.0 kW.
• Sum of the indoor unit classes in this set: 8.0 kW.
• Technology: Inverter.
• Compressor: hermetically sealed Swing compressor.
• Refrigerant: R-32.
• Factory refrigerant charge: 2.00 kg.
• Global warming potential (GWP): 675.
• CO₂ equivalent of the factory charge: 1.35 tonnes.
• Dimensions (H × W × D): 734 × 974 × 408 mm.
• Weight: 62 kg.
• Nominal sound pressure in cooling: 48 dB(A).
• Nominal sound pressure in heating: 48 dB(A).
• Power supply: single-phase, 220-240 V, 50 Hz.
• Magnetothermal protection indicated in the manual: 20 A, subject to electrical calculation and current regulations.
• Outdoor operating temperature in cooling: from -10 °C to +50 °C according to the A8 generation product sheet.
• Outdoor operating temperature in heating: from -15 °C to +24 °C dry-bulb according to the installation manual consulted.
• Maximum pipe length per indoor unit: 25 metres.
• Maximum total refrigerant piping length: 50 metres.

Available capacity and efficiency may vary in extreme temperature conditions. For demanding installations, the performance table at different temperatures published by Daikin should be consulted.

Refrigerant connections of the Daikin Perfera 3x1

The Daikin Perfera 3x1 multisplit air conditioner has three independent refrigerant circuits connecting the FTXM20B, FTXM25B and FTXM35B indoor units to the 3MXM68A8 outdoor unit.

Connection diameters of the indoor units

All three indoor units have the same refrigerant connection diameters:

• Daikin FTXM20B 2.0 kW: 1/4" liquid connection (6.4 mm) and 3/8" gas connection (9.5 mm).
• Daikin FTXM25B 2.5 kW: 1/4" liquid connection (6.4 mm) and 3/8" gas connection (9.5 mm).
• Daikin FTXM35B 3.5 kW: 1/4" liquid connection (6.4 mm) and 3/8" gas connection (9.5 mm).

Connection diameters of the outdoor unit

The Daikin 3MXM68A8 outdoor unit has three 1/4" liquid refrigerant ports, while the gas connection diameters are as follows:

• Port A: 1/4" liquid (6.4 mm) and 3/8" gas (9.5 mm).
• Port B: 1/4" liquid (6.4 mm) and 1/2" gas (12.7 mm).
• Port C: 1/4" liquid (6.4 mm) and 1/2" gas (12.7 mm).

Important about the connections: the three indoor units in this set have 3/8" gas connections, while ports B and C on the outdoor unit have a 1/2" diameter. For this reason, 1/2" to 3/8" refrigerant reducers will be required to connect these two circuits correctly.

The Daikin manual identifies reducers 2 and 4 to adapt the 1/2" gas connections to 3/8" piping.

The outdoor unit includes a reducer set among its standard accessories. The installer must check that the necessary adapters are available and respect the correspondence between the refrigerant and electrical connections of each indoor unit.

Maximum pipe length and permitted height differences

To ensure the correct operation of the Daikin Perfera 3x1 system, the installation must respect the maximum refrigerant pipe lengths and height differences established by Daikin.

• Maximum pipe length per indoor unit: 25 metres.
• Maximum total refrigerant pipe length: 50 metres, adding the three runs.
• Minimum pipe length per indoor unit: 3 metres.
• Maximum height difference between outdoor and indoor units when the outdoor unit is above: 15 metres.
• Maximum height difference between indoor units when the outdoor unit is above: 7.5 metres.
• Maximum height difference between outdoor and indoor units when the outdoor unit is below: 7.5 metres.
• Maximum height difference between indoor units when the outdoor unit is below: 15 metres.
• Total length covered by the factory refrigerant charge: 30 metres of liquid piping.
• Additional refrigerant charge: 20 grams per additional metre when the total run exceeds 30 metres, applying Daikin's calculation and rounding procedure.
• Maximum permitted total refrigerant charge: 2.4 kg.

For example, an installation can be designed with refrigerant runs of 10, 15 and 20 metres, giving a total length of 45 metres. This layout respects the maximum pipe limits established by the manufacturer, although the height differences and other technical conditions must also be checked.

When exceeding the 30 metres covered by the factory charge, it will be necessary to calculate and add the corresponding amount of R-32 refrigerant. For a total length of 45 metres, the theoretical calculation would be 300 grams additional, following the procedure established by Daikin.

The refrigerant length is measured by taking the liquid pipe run between the units as a reference, without adding the gas pipe length of the same circuit again.

Insulation of refrigerant piping

Daikin establishes specific requirements for the thermal insulation of refrigerant piping, in order to reduce energy losses and prevent condensation.

• 1/4" liquid pipes: thermal insulation suitable for cooling.
• 3/8" gas pipes: thermal insulation suitable for cooling.
• Recommended material: polyethylene foam with a thermal resistance of at least 120 °C.
• Refrigerant piping: seamless copper, phosphorus deoxidised and suitable for R-32 refrigerant.
• Minimum wall thickness for 1/4", 3/8" and 1/2" diameters: 0.8 mm, subject to applicable regulatory and pressure requirements.

When the ambient temperature exceeds 30 °C and relative humidity is above 80%, Daikin sets a minimum insulation thickness of 20 mm to prevent surface condensation.

The installer must check the insulation of each circuit according to the environmental conditions, as well as the correct condensate drainage and the necessary clearances around the outdoor unit.

Which spaces is the Daikin Perfera 3x1 2.0 + 2.5 + 3.5 kW recommended for?

The Daikin Perfera 3x1 multisplit 2.0 + 2.5 + 3.5 kW is especially interesting for homes and offices that need to condition three rooms with different thermal requirements.

A common layout may consist of installing the 2.0 kW FTXM20B unit in a small bedroom or office, the 2.5 kW FTXM25B in a medium-sized bedroom and the 3.5 kW FTXM35B in a living room, dining room or large bedroom.

As a commercial guideline, the 2.0 kW unit may be suitable for rooms of approximately 12 to 20 m², the 2.5 kW unit for rooms of around 15 to 25 m² and the 3.5 kW unit for spaces of approximately 25 to 35 m².

These surfaces are indicative and do not replace a thermal load calculation. The actual climate control capacity will depend on insulation, orientation, ceiling height, glazed area, occupancy and climatic conditions.

It should also be noted that when the three indoor units operate simultaneously, the available power is distributed according to the system's total capacity, 6.8 kW in cooling and 8.6 kW in heating.

To ensure proper sizing, it is advisable for a professional to calculate the cooling and heating needs of each room before installation.

Installation and required materials

The Daikin Perfera 3x1 set consists of one FTXM20B indoor unit, one FTXM25B indoor unit, one FTXM35B indoor unit and one 3MXM68A8 outdoor unit, together with their corresponding remote controls and the standard accessories supplied by the manufacturer.

The materials required for installation are not included in the set. Depending on the characteristics of each home or premises, copper refrigerant piping, insulation, electrical and interconnection wiring, condensate drain piping, trunking, outdoor unit supports and fixing elements will be required.

It will also be necessary to check the availability of refrigerant reducers to adapt the gas connections of ports B and C, as well as verify the correspondence between the refrigerant and electrical connections of each indoor unit.

The installation must respect the maximum pipe lengths, height differences, power supply conditions and start-up instructions established by Daikin.

The installation must be carried out by qualified professionals accredited to work with air conditioning equipment using fluorinated gases, in compliance with current regulations and the manufacturer's official technical instructions.

With its ability to condition three rooms, independent WiFi control, Inverter technology, quiet operation and advanced air treatment technologies, the Daikin Perfera 3x1 multisplit air conditioner FTXM20B + FTXM25B + FTXM35B + 3MXM68A8 offers a versatile climate control solution for enjoying cooling and heating all year round.
