2x1 Air Conditioner with WiFi Daikin Perfera 2.0 kW + 3.5 kW

The Daikin Perfera 2x1 multisplit air conditioner with WiFi, 2.0 kW + 3.5 kW is a high-efficiency climate control solution designed to cool and heat two rooms using a single outdoor unit. This set combines a Daikin Perfera FTXM20B 2.0 kW indoor unit, an FTXM35B 3.5 kW indoor unit, and a Daikin 2MXM50A8 outdoor unit with a nominal cooling capacity of 5.0 kW.

Thanks to its Inverter technology, heat pump with R-32 refrigerant and WiFi connectivity, it provides a comfortable temperature all year round. Each indoor unit can be controlled independently, adjusting the temperature, fan speed and schedules to suit the needs of each room.

The Daikin Perfera range stands out for incorporating advanced air treatment technologies, such as Flash Streamer, a two-zone intelligent motion sensor and a 3D air distribution system. In addition, its quiet operation and high energy efficiency make this system an especially attractive option for homes, apartments, bedrooms, studies and offices.

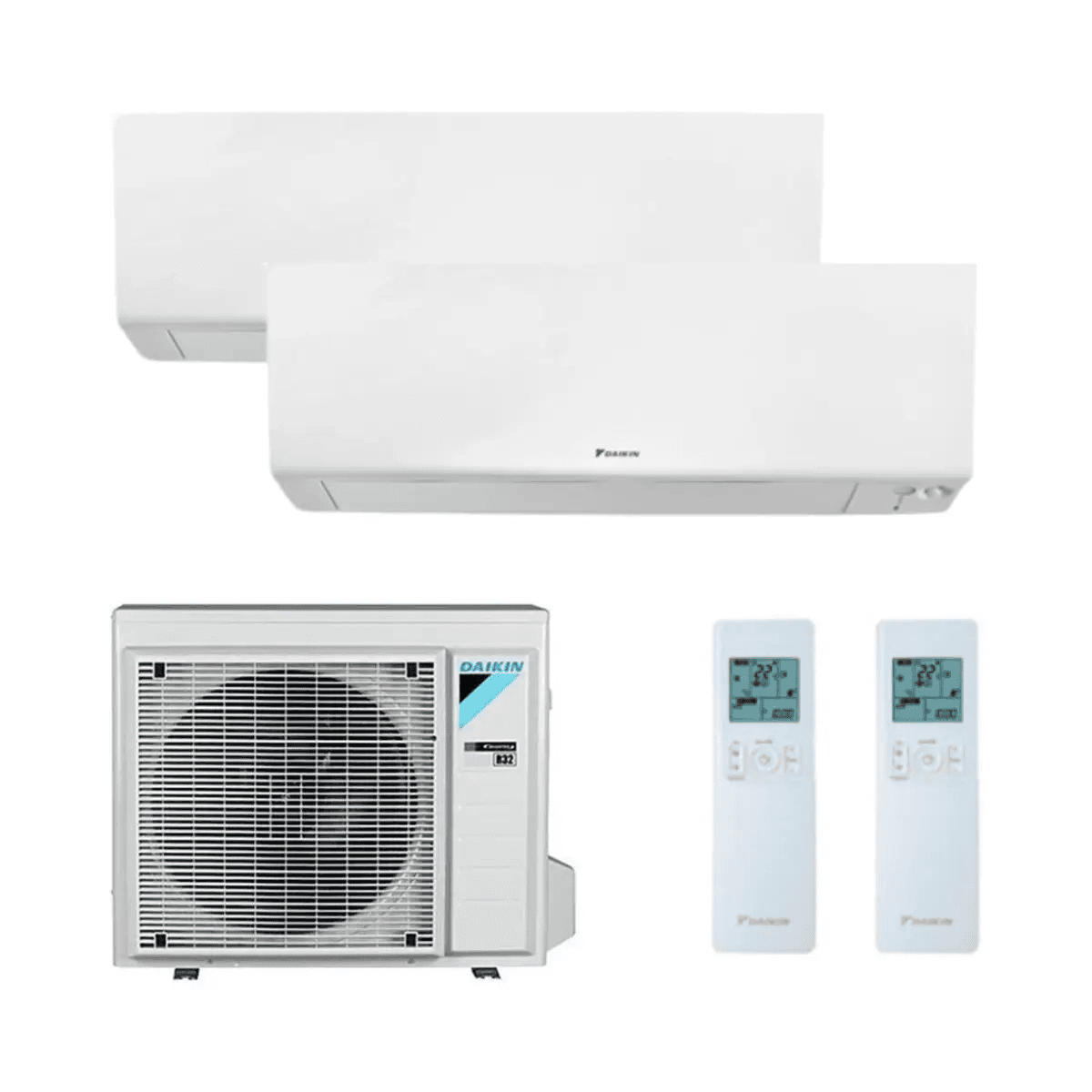

Daikin Perfera 2x1 air conditioner composition

This multisplit set is made up of the following units:

• 1 Daikin Perfera FTXM20B indoor unit: wall-mounted unit with 2.0 kW cooling class, equivalent to approximately 6,824 BTU/h, commercially 7000 BTU. It features WiFi, quiet operation, presence sensor and Flash Streamer technology.
• 1 Daikin Perfera FTXM35B indoor unit: wall-mounted unit with 3.5 kW cooling class, equivalent to approximately 11,942 BTU/h, commercially 12000 BTU. It offers greater climate control capacity for living rooms, large bedrooms and other spaces with higher thermal requirements.
• 1 Daikin 2MXM50A8 outdoor unit: Inverter multisplit unit with two independent refrigerant connections, R-32 refrigerant and a nominal capacity of 5.0 kW in cooling and 5.6 kW in heating.
• 2 Daikin ARC466A93 wireless remote controls: one for each indoor unit, allowing individual management of climate control functions.

The multisplit configuration allows two rooms to be air conditioned using a single outdoor unit, reducing the space required on façades, balconies and terraces compared with installing two separate systems.

Main advantages of the Daikin Perfera 2x1 air conditioner

Independent climate control for two rooms

The Daikin Perfera 2x1 system allows the two indoor units to be controlled independently, adjusting the temperature and airflow of each room according to the preferences of its occupants.

For example, the 2.0 kW FTXM20B unit can be installed in a bedroom or study and the 3.5 kW FTXM35B unit in a living room or a larger room.

Both units can operate simultaneously, although they must work in the same general cooling or heating mode. It is not possible to cool one room while heating the other.

Smart WiFi control with Daikin Onecta

The Daikin Perfera FTXM20B and FTXM35B indoor units feature WiFi connectivity so you can manage the air conditioner from a smartphone or tablet using the Daikin Onecta app.

Its functions include:

• Individual on/off control of each indoor unit from anywhere with an Internet connection.
• Independent temperature adjustment for each room.
• Selection of cooling, heating, fan and dehumidification modes.
• Adjustment of fan speed and airflow distribution.
• Schedule and timer programming.
• Control of the main functions through compatible voice assistants such as Amazon Alexa and Google Assistant.

WiFi connectivity makes it possible to adapt the operation of each unit to daily routines, avoiding unnecessary air conditioning in unused rooms and helping save energy.

Flash Streamer technology to improve air quality

The Daikin Perfera indoor units incorporate Flash Streamer technology, which uses high-speed electrons to help reduce certain allergens and odours present in the air.

This technology is complemented by different filtration systems:

• Silver particle filter: helps capture certain allergens such as pollen and dust mites.
• Titanium apatite deodorising filter: helps reduce unpleasant odours.
• Dust filter: traps particles present in the air circulating through the indoor unit.

These features help maintain a more comfortable indoor environment and better air quality in the air-conditioned rooms.

Two-zone intelligent motion sensor

The two-zone intelligent presence sensor detects the location of people within the room and adjusts the direction of the airflow to avoid direct drafts on occupants.

When no presence is detected for a certain period, the unit can automatically activate an energy-saving mode, reducing consumption without the need to manually switch off the air conditioner.

Even air distribution with Comfort+ and 3D airflow

Daikin's Comfort+ technology uses dual flaps that optimise airflow direction to achieve a more even temperature distribution.

In addition, the 3D airflow system combines automatic vertical and horizontal movement to distribute cool or warm air throughout different areas of the room.

These technologies help reduce temperature differences within the room and provide greater thermal comfort.

Ultra-quiet operation of just 19 dB(A)

One of the most notable features of the Daikin Perfera range is its quiet operation. Both the FTXM20B and FTXM35B indoor units achieve a minimum sound pressure of 19 dB(A) in quiet cooling mode.

In heating mode, both units can operate with a minimum sound pressure of 20 dB(A).

These noise levels make them a suitable option for bedrooms, children's rooms, studies and other spaces where discreet climate control is desired.

Powerful, Econo and weekly scheduling functions

The indoor units include different modes to adapt their operation to the needs of each moment:

• Powerful mode: temporarily increases performance to quickly reach the desired temperature.
• Econo mode: limits the unit's maximum electrical consumption.
• Quiet mode: reduces fan speed to minimise noise.
• Night mode: adapts operation during rest hours.
• Dehumidification: helps reduce ambient humidity.
• Fan mode: allows air to circulate in the room without activating cooling or heating.
• Weekly scheduling: makes it easy to set different operating times.

Cooling and heating capacity of the Daikin Perfera 2x1 set

The system is made up of two indoor units in the 2.0 and 3.5 kW class, whose combined individual capacities total 5.5 kW. However, the nominal cooling capacity of the set when both units operate simultaneously is 5.0 kW, determined by the performance of the 2MXM50A8 outdoor unit.

The available capacity is distributed between the indoor units according to the thermal demand, the number of units in operation and the environmental conditions.

Cooling capacity

According to Daikin technical tables for the 2MXM50A8 outdoor unit and the 2.0 + 3.5 kW class combination, the nominal reference values are:

• Minimum cooling capacity: 1.8 kW.
• Nominal cooling capacity: 5.0 kW, approximately 17,060 BTU/h.
• Maximum cooling capacity: 5.4 kW.
• Nominal cooling power input: 1.24 kW.
• Nominal capacity assigned to the FTXM20B with both units operating: 1.82 kW.
• Nominal capacity assigned to the FTXM35B with both units operating: 3.18 kW.

Heating capacity

The reversible heat pump allows the system to be used during the colder months, with a combined nominal heating capacity of 5.6 kW.

• Minimum heating capacity: 1.2 kW.
• Nominal heating capacity: 5.6 kW, approximately 19,110 BTU/h.
• Maximum heating capacity: 5.9 kW.
• Nominal heating power input: 1.36 kW.
• Nominal capacity assigned to the FTXM20B with both units operating: 2.04 kW.
• Nominal capacity assigned to the FTXM35B with both units operating: 3.56 kW.

These capacities come from Daikin's official combination tables by power class for the 2MXM50A8 outdoor unit. The values correspond to nominal conditions and may vary depending on outdoor temperature, indoor temperature and simultaneous operation.

Energy efficiency of the Daikin Perfera 2x1 air conditioner

The Daikin Perfera air conditioner uses Inverter technology to regulate compressor speed according to climate control needs, avoiding unnecessary starts and stops and promoting efficient electricity consumption.

The Daikin 2MXM50A8 multisplit range achieves an energy rating of up to A+++ in cooling and A++ in heating for average climate, depending on the combination of indoor units installed.

Its main energy features include:

• Reference energy class in cooling: up to A+++.
• Reference energy class in heating, average climate: A++.
• Technology: Inverter with Swing compressor.
• Refrigerant: R-32.
• Independent control: allows you to air condition only the rooms that are being used.
• Econo mode: limits the maximum electrical consumption of the indoor units.

The SEER and SCOP seasonal efficiency indicators depend on the exact combination of indoor units and should be checked on the certified energy label. The rating shown is the one published for the 2MXM50A8 range and should not be interpreted as a specific energy certification for the FTXM20B + FTXM35B combination.

Technical features of the Daikin FTXM20B 2.0 kW indoor unit

The Daikin Perfera FTXM20B indoor unit is a compact wall-mounted unit designed for rooms with moderate thermal needs, such as bedrooms, studies and workspaces.

• Brand: Daikin.
• Range: Perfera.
• Reference: FTXM20B.
• Type: wall-mounted indoor unit.
• Colour: white.
• Cooling capacity class: 2.0 kW.
• Cooling equivalent: approximately 6,824 BTU/h, commercially 7000 BTU.
• Dimensions (H × W × D): 298 × 804 × 252 mm.
• Weight: 11.5 kg.
• Airflow in cooling (high/medium/low/quiet): 11.9 / 8.9 / 6.3 / 4.9 m³/min.
• Airflow in heating (high/medium/low/quiet): 11.4 / 9.2 / 6.9 / 4.9 m³/min.
• Sound pressure in cooling (high/medium/low/quiet): 41 / 33 / 25 / 19 dB(A).
• Sound pressure in heating (high/medium/low/quiet): 39 / 34 / 26 / 20 dB(A).
• Sound power in cooling: 54 dB(A).
• Sound power in heating: 53 dB(A).
• Liquid refrigerant connection: 1/4" (6.4 mm).
• Gas refrigerant connection: 3/8" (9.5 mm).
• Condensate drain connection: 16 mm.
• Wireless remote control: ARC466A93.
• Connectivity: WiFi via Daikin Onecta.
• Comfort technologies: Comfort+, two-zone motion sensor and 3D airflow.
• Air treatment: Flash Streamer, silver particle filter and titanium apatite deodorising filter.
• Additional functions: Powerful mode, Econo mode, quiet mode, fan, dehumidification and weekly scheduling.

Technical features of the Daikin FTXM35B 3.5 kW indoor unit

The Daikin Perfera FTXM35B indoor unit offers a 3.5 kW cooling capacity class, making it suitable for living rooms, large bedrooms, dining rooms and other spaces with greater climate control needs.

• Brand: Daikin.
• Range: Perfera.
• Reference: FTXM35B.
• Type: wall-mounted indoor unit.
• Colour: white.
• Cooling capacity class: 3.5 kW.
• Cooling equivalent: approximately 11,942 BTU/h, commercially 12000 BTU.
• Dimensions (H × W × D): 298 × 804 × 252 mm.
• Weight: 11.5 kg.
• Airflow in cooling (high/medium/low/quiet): 13.2 / 9.4 / 7.1 / 4.6 m³/min.
• Airflow in heating (high/medium/low/quiet): 11.1 / 9.4 / 6.9 / 5.1 m³/min.
• Sound pressure in cooling (high/medium/low/quiet): 45 / 37 / 29 / 19 dB(A).
• Sound pressure in heating (high/medium/low/quiet): 39 / 35 / 28 / 20 dB(A).
• Sound power in cooling: 58 dB(A).
• Sound power in heating: 53 dB(A).
• Liquid refrigerant connection: 1/4" (6.4 mm).
• Gas refrigerant connection: 3/8" (9.5 mm).
• Condensate drain connection: 16 mm.
• Wireless remote control: ARC466A93.
• Connectivity: WiFi via Daikin Onecta.
• Comfort technologies: Comfort+, two-zone motion sensor and 3D airflow.
• Air treatment: Flash Streamer, silver particle filter and titanium apatite deodorising filter.
• Additional functions: Powerful mode, Econo mode, quiet operation, fan, dehumidification and weekly scheduling.

Technical features of the Daikin 2MXM50A8 outdoor unit

The Daikin 2MXM50A8 outdoor unit is an Inverter multisplit heat pump designed to connect two compatible indoor units via independent refrigerant circuits.

Its hermetically sealed Swing compressor adjusts operation to the thermal demand of the rooms, helping maintain stable temperatures and optimise electricity consumption.

• Brand: Daikin.
• Reference: 2MXM50A8.
• Type: 2x1 multisplit outdoor unit.
• Number of connections for indoor units: 2.
• Nominal cooling capacity: 5.0 kW.
• Nominal heating capacity: 5.6 kW.
• Technology: Inverter.
• Compressor: hermetically sealed Swing.
• Refrigerant: R-32.
• Factory refrigerant charge: 1.15 kg.
• Global warming potential (GWP): 675.
• CO₂ equivalent of factory charge: approximately 0.78 tonnes.
• Dimensions (H × W × D): 552 × 852 × 350 mm.
• Weight: 41 kg.
• Nominal airflow in cooling: 37 m³/min.
• Nominal sound pressure in cooling: 48 dB(A).
• Nominal sound pressure in heating: 50 dB(A).
• Sound power in cooling: 60 dB(A).
• Power supply: single-phase, 220-240 V, 50 Hz.
• Reference current for sizing: 13.3 A.
• Recommended circuit breaker according to the manual: 16 A, subject to the electrical sizing of the installation.
• Outdoor operating temperature in cooling: from -10 °C to +50 °C.
• Heating operation: prepared to work with outdoor temperatures down to -20 °C, according to Daikin specifications.
• Maximum pipe length per indoor unit: 20 metres.
• Maximum total pipe length: 30 metres.

Refrigerant connections of the Daikin Perfera 2x1

The Daikin Perfera 2x1 multisplit air conditioner has two refrigerant circuits that connect the FTXM20B and FTXM35B indoor units to the 2MXM50A8 outdoor unit.

Connection diameters of the indoor units

• Daikin FTXM20B 2.0 kW: 1/4" liquid connection (6.4 mm) and 3/8" gas connection (9.5 mm).
• Daikin FTXM35B 3.5 kW: 1/4" liquid connection (6.4 mm) and 3/8" gas connection (9.5 mm).

Connection diameters of the outdoor unit

The Daikin 2MXM50A8 outdoor unit has the following refrigerant ports:

• Port A: 1/4" liquid connection and 3/8" gas connection.
• Port B: 1/4" liquid connection and 1/2" gas connection.

Important regarding the connections: both indoor units have 3/8" gas connections, while port B on the outdoor unit has a 1/2" gas connection. Therefore, to connect one of the indoor units to this port, the 1/2" to 3/8" refrigerant reducer indicated by Daikin must be used.

The outdoor unit includes a reducer set among its standard accessories. The installer must check its availability and make the connections according to the manufacturer's official diagram.

Maximum pipe length and permitted height differences

The installation of the Daikin Perfera FTXM20B + FTXM35B + 2MXM50A8 system must respect the maximum pipe distances and height differences established by Daikin to ensure proper operation.

• Maximum pipe length per indoor unit: 20 metres.
• Maximum total refrigerant pipe length: 30 metres, adding both runs.
• Minimum pipe length per indoor unit: 3 metres.
• Maximum height difference between outdoor and indoor units when the outdoor unit is above: 15 metres.
• Maximum height difference between the indoor units when the outdoor unit is above: 7.5 metres.
• Maximum height difference between outdoor and indoor units when the outdoor unit is below: 7.5 metres.
• Maximum height difference between the indoor units when the outdoor unit is below: 15 metres.
• Total length covered by the factory refrigerant charge: 20 metres of liquid pipe.
• Additional refrigerant charge: 20 grams per metre of pipe exceeding 20 total metres, following the manufacturer's instructions and rounding criteria.

For example, an installation can be carried out with a 10-metre refrigerant run to the first indoor unit and another 15-metre run to the second, giving a total length of 25 metres. This layout complies with the length limits, although the height differences and other installation conditions must also be checked.

When exceeding the 20 metres covered by the factory charge, it will be necessary to calculate and add the corresponding amount of R-32 refrigerant following the official technical instructions.

What spaces is the Daikin Perfera 2x1 2.0 + 3.5 kW recommended for?

The Daikin Perfera 2x1 multisplit 2.0 + 3.5 kW is especially suitable for homes and offices that need to air condition two spaces with different thermal demands.

The 2.0 kW FTXM20B indoor unit can be used in bedrooms, children's rooms and small studies, while the 3.5 kW FTXM35B unit is intended for living rooms, dining rooms, large bedrooms and spaces with greater cooling needs.

The area each unit can air condition will depend on insulation, orientation, ceiling height, glazed surface, occupancy and the climate conditions of the home.

It should also be noted that when both indoor units operate simultaneously, the available capacity is distributed according to the total capacity of the outdoor unit and the operating conditions.

To ensure proper sizing, it is advisable for a professional to calculate the cooling and heating needs of each room before installation.

Installation and required materials

The Daikin Perfera 2x1 set consists of an FTXM20B indoor unit, an FTXM35B indoor unit and a 2MXM50A8 outdoor unit, together with their corresponding remote controls and the standard accessories supplied by the manufacturer.

The materials required for installation are not included in the set. Depending on the characteristics of each installation, copper refrigerant piping, insulation, electrical and interconnection wiring, condensate drain piping, trunking, outdoor unit supports and fixing elements will be required.

It will also be necessary to check the correct use of the refrigerant reducers supplied with the outdoor unit, as well as the assignment of each indoor unit to its corresponding connection port.

Installation must be carried out by qualified professionals accredited to install air conditioning equipment using fluorinated gases, in compliance with current regulations and the manufacturer's technical instructions.

With its ability to air condition two rooms, independent WiFi control, Inverter technology, quiet operation and advanced air purification technologies, the Daikin Perfera multisplit 2x1 air conditioner FTXM20B + FTXM35B + 2MXM50A8 offers an efficient and comfortable climate control solution for enjoying cooling and heating all year round.
