Information about Mitsubishi Electric Ducted Air Conditioner MSEZ-60VA 6.1 kW 21000 BTU
The Mitsubishi Electric MSEZ-60VA ducted air conditioner provides efficient and quiet climate control for medium and large spaces. The set includes the indoor unit SEZ-M60DA2, the outdoor unit SUZ-M60VA, and the wall-mounted control panel PAR-40MAA. Thanks to its low-profile design (200 mm) and inverter technology, it ensures stable performance, discreet integration, and optimized energy consumption.
Technical Specifications
- Cooling capacity: 6.1 kW (21,000 BTU)
- Heating capacity: 7.0 kW
- SEER: 6.6
- SCOP: 4.2
- EER: 3.33
- COP: 4.10
- Refrigerant: R32
- Airflow: up to 1080 m³/h
- Indoor unit noise level: 25–35 dB(A)
- Refrigerant connections: 1/4” (Ø6.35 mm) – 1/2” (Ø12.7 mm)
- Power supply: single-phase 230 V / 50 Hz
Set Composition
- 1 × Indoor unit SEZ-M60DA2
- 1 × Outdoor unit SUZ-M60VA

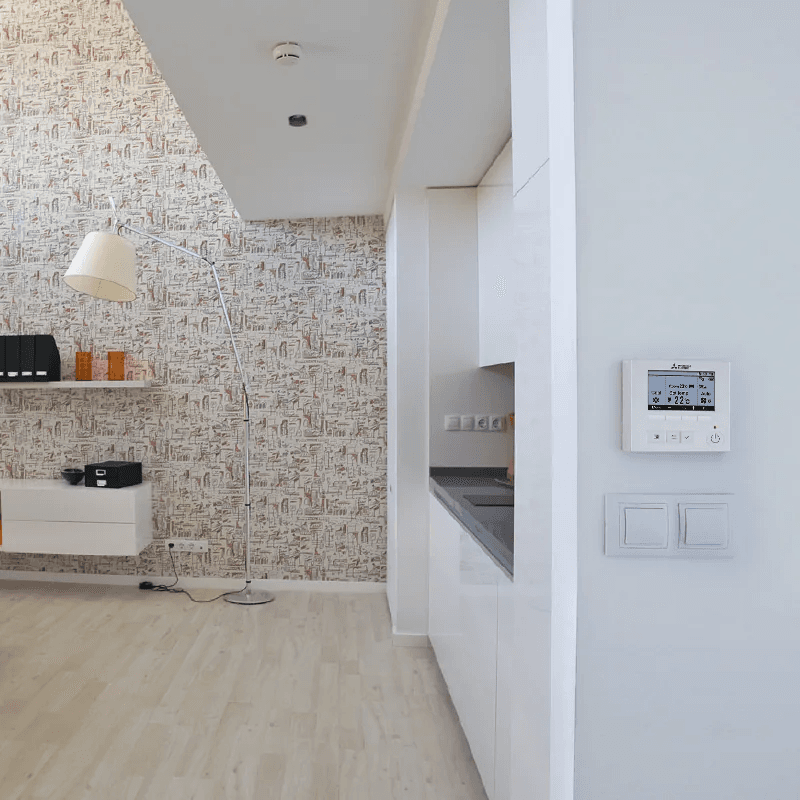

- 1 × Control panel PAR-40MAA
Installation and Maintenance
The system is supplied without additional installation materials. The indoor unit SEZ-M60DA2 features a height of just 200 mm, ideal for false ceilings or limited spaces, with adjustable static pressure. It offers front access to filters and internal components, making cleaning and preventive maintenance tasks easier.
Dimensions and Weight
- Indoor unit (SEZ-M60DA2): 200 × 1100 × 700 mm – 22 kg
- Outdoor unit (SUZ-M60VA): 880 × 840 × 330 mm – 53 kg
Recommended Applications
Suitable for homes, offices, or commercial spaces between 50 and 70 m² where efficient, discreet, and quiet climate control is required through low-profile ducting with advanced wall control.
